Product Description:

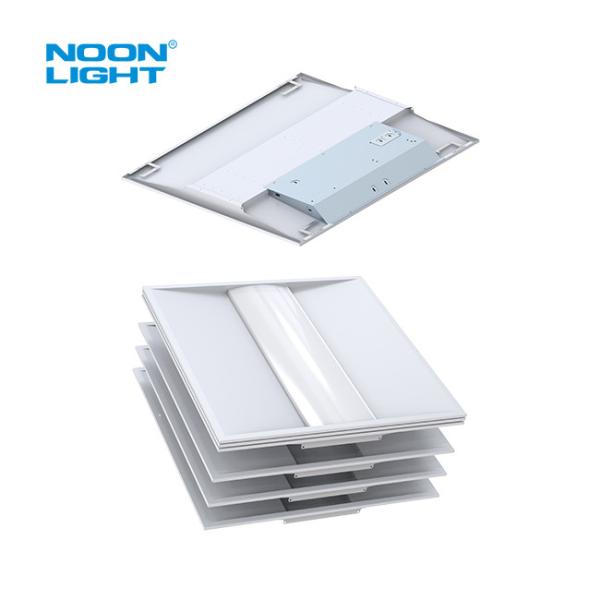

Noonlight LED Troffers offer an ideal solution for new or remodel construction projects that require super slim fixtures for fluorescent troffers. With adjustable CCT and wattage technology, these lights allow customers to select the best color temperature and lumen output for their specific lighting application.
The frosted lens technology effectively delivers even light, which is complemented by excellent color rendering and low glare features. These fixtures are architecturally designed to suit the interiors of various settings such as offices, educational facilities, healthcare centers, hotels, and retail stores.
Features:
Our goal is to reduce excess inventory. We have developed a product that can cover up to 16 different models with the use of only one SKU. This will help our customers efficiently manage their inventory and reduce costs.
Our CCT and Power Tunable LED Troffer Light comes with an auxiliary feature that allows it to connect with low voltage sensors, BLE, or other IOT networks. This feature makes it easier for users to control and monitor their lighting system remotely.
We pride ourselves on our depth design which is both super thin and standard. This makes installation and maintenance of our Troffer Light a breeze. Additionally, our products come with EM battery backup and are 5-100% 0-10V dimmable, flicker-free, and dim to off.
We also offer adjustable CCT Troffer Light options that come equipped with built-in PIR sensors and motion sensors. These features provide a more personalized lighting experience and help conserve energy by automatically turning off lights when not in use.
Technical Parameters:
| Product Name |
LED Troffer Lights |
| Application |
Schools, Offices, Conference Room, Hospitality Etc. |
| Power |
16W / 20W / 24W / 27W |
| Input Voltage |
100-277VAC Or 100-347VAC |
| Luminous Flux |
2000-2500-3000-3375LM |
| Color Temperature |
3000K / 3500K 4000K / 5000K |
| CRI |
>80 |
| Beam Angle |
120° |
| Lifespan |
50,000hrs |
| Warranty |
5 Years |
Accessories
Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting
Default Setting/Setting
- Sensitivity: 100%/25%, 50%, 75%, 100%
- Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
- Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
- Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
- Twilight Level: 30%/off, 10%, 30%, 50%
Advantages
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
| CCT Tunable Slide Switch Position |
| Position/Group |
CCT |
| Low |
3000K(Optional) |
| Middle 1 |
3500K |
| Middle 2 |
4000K |
| High |
5000K |
Applications:
Schools, offices, conference room, hospitality etc.
