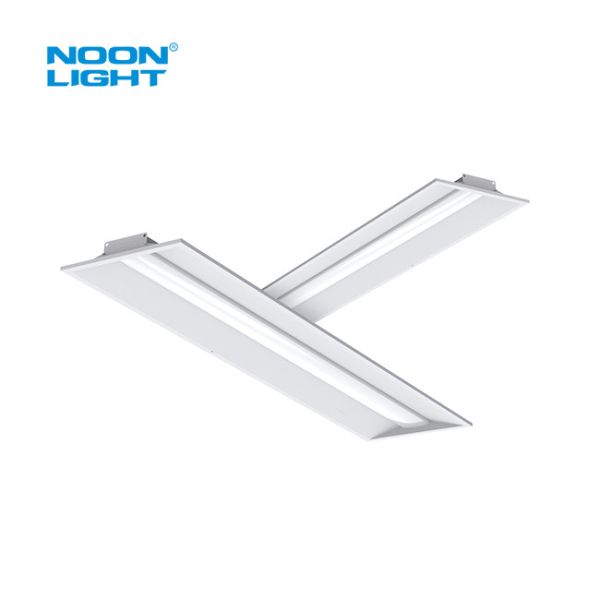

Power Tunable Suspension Mounted Drop Ceiling LED Troffer Lights

Name: Power Tunable Suspension Mounted Drop Ceiling LED Troffer Lights
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-TR-1X4FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : Bi-level PIR Sensor Integrated 1FTx4FT 128w Equivalent CENTRAL BASKET LED TROFFER LIGHT CCT & POWER ADJUSTABLEDLC5.1 Premium LED Troffer

Power : 27W-24W-20W-16W Power Adjustable

Luminous Efficacy : 130 lm/W

Housing : 24 Gauge Steel, Gloss White Painting

Light Source : 2835 SMD, CRI>80

Installation : Surface Mounted, Suspension Mounted

DLC Category : Direct Linear Ambient Luminaires

Contact Now

Power Tunable Suspension Mounted Drop Ceiling LED Troffer Lights

Description

Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.
Frosted lens delivers even light with excellent color rendering and low glare, while its architectural design features make it the perfect complement to office, education, health care, hospitality and retail interiors.

CCT and Power Tuanable LED Troffer Light Features

CLASS P Programmable LED Driver, 4 Step Power Adujustable,
DLC5.1 Premium LED Troffer CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
2 Depth Design: Super Thin & Standard
5-100% 0-10V dimmable, flicker free, Dim to off.
CCT and Power Tuanable LED Troffer Light Built-in PIR Sensor and Motion Sensor Options.
CCT and Wattage Selective Troffer L70>50,000hrs, 5 year warranty.

CCT and Power Tuanable LED Troffer Light Specification

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-14-27-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	27W	Frosted	Ra>80, 30K 35K 40K 50K	3375LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-24-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	24W	Frosted	Ra>80, 30K 35K 40K 50K	3000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-20-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	20W	Frosted	Ra>80, 30K 35K 40K 50K	2500LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-16-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	16W	Frosted	Ra>80, 30K 35K 40K 50K	2000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent

Accessories

Troffer Light With PIR Sensor Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Power Tunable Suspension Mounted Drop Ceiling LED Troffer Lights

Specification

Input: 12-24VDC, >8ma
0-10V DC output signal
Memeory function with one bottun commissiong.
IR Remote controller commission.
Detecton Range: Max. 6m in diameter.
Mounting Height: 3-4m.
Optional Daylight Harvesting

Default Setting/Setting

Sensitivity: 100%/25%, 50%, 75%, 100%
Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
Twilight Level: 30%/off, 10%, 30%, 50%

Advantages

Adjustable CCT Troffer Light HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Power Tunable Suspension Mounted Drop Ceiling LED Troffer Lights

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
1X4	27W	24W	20W	16W
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

CCT Tunable Slide Switch Position
Position/Group	CCT
Low	3000K(Optional)
Middle 1	3500K
Middle 2	4000K
High	5000K

Certificate

Power Tunable Suspension Mounted Drop Ceiling LED Troffer Lights

CCT and Power Tuanable LED Troffer Light Applications

Schools, offices, conference room, hospitality etc.
