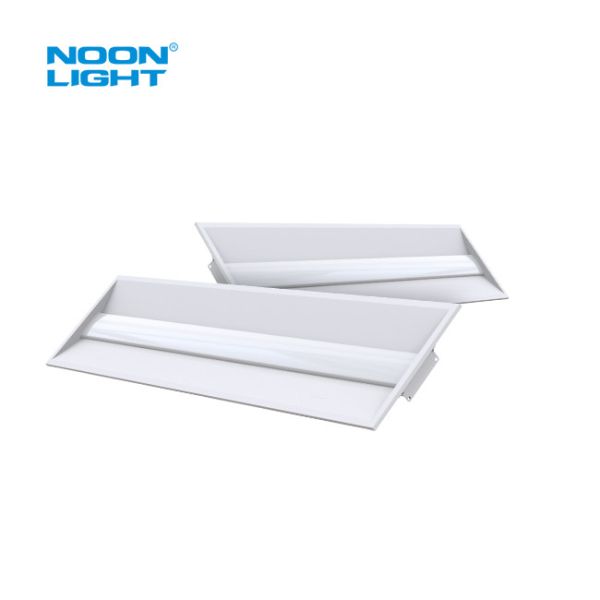

1x4FT Power selectable Center Basket Troffer Light Fixture

Name: 1x4FT Power selectable Center Basket Troffer Light Fixture
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-TR-1X4FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : DLC5.1 Premium LED Troffer

CCT : 30K/35K/40K/50K Tunable

Luminous Efficacy : 130 lm/W

Light Source : 2835 SMD, CRI>80

Installation : Surface Mounted, Suspension Mounted

Warranty : 5 years

DLC Category : Stairwell and Passageway Luminaires

Contact Now

1x4FT Power selectable Center Basket Troffer Light Fixture

Description

Noonlight LED Troffer Retrofit Kits are the ideal solution to update outdated fluorescent troffers into energy-efficient, contemporary LED systems. Each LED retrofit kit includes everything needed for a seamless installation without modifying the existing fixture mounting.
Super sleek fixture allows the installers no need to remove the fluorescent fixture mounting from the ceiling.

Features

Troffer Lights With EM Battery Backup UP TO 130LM/W
Minimize stock, 1 SKU can cover max. of 16 models.
CCT and Power Tuanable LED Troffer Light An auxiliary to connect low voltage sensor/BLE or other IOT network.
5-100% 0-10V dimmable, flicker free, Dim to off.
DLC5.1 Premium LED Troffer L70>50,000hrs, 5 year warranty.

Specification

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-14-27-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	27W	Frosted	Ra>80, 30K 35K 40K 50K	3375LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-24-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	24W	Frosted	Ra>80, 30K 35K 40K 50K	3000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-20-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	20W	Frosted	Ra>80, 30K 35K 40K 50K	2500LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-16-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	16W	Frosted	Ra>80, 30K 35K 40K 50K	2000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent

Installation

Suitable for surface mounted, suspended mounted.

1x4FT Power selectable Center Basket Troffer Light Fixture

CCT and Power Tuanable LED Troffer Light Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

1x4FT Power selectable Center Basket Troffer Light Fixture

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
1X4	27W	24W	20W	16W
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

CCT Tunable Slide Switch Position
Position/Group	CCT
Low	3000K(Optional)
Middle 1	3500K
Middle 2	4000K
High	5000K

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

OEM/ODM Serivce
Photometric/IES file
PCB Design/Driver Design
Heat Management/Optical Design
Industry Design
Market Support
3D Printing
Multiple Listing/Private Label.

1x4FT Power selectable Center Basket Troffer Light Fixture

Applications

Schools, offices, conference room, hospitality etc.
