Product Description:

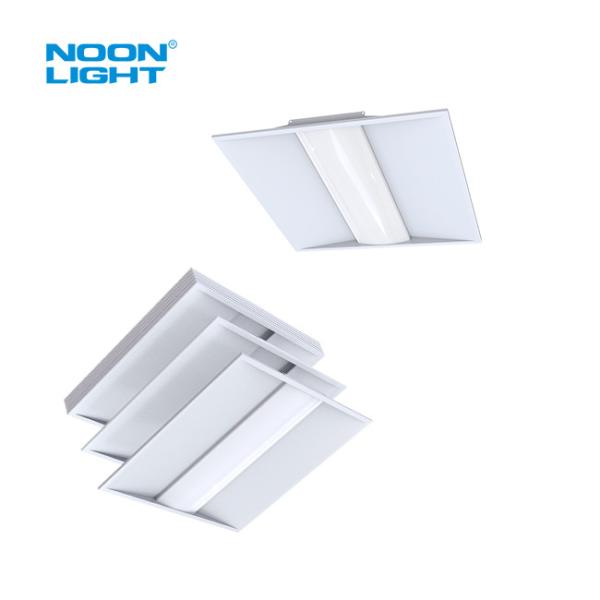

The Noonlight LED Troffers are the perfect slim fixture option for fluorescent troffers, whether it is for a new or remodel construction. They provide customers with CCT (color temperature) and wattage adjustable technology, allowing them to choose the most fitting lighting application for their needs.
The frosted lens of these troffers was designed to deliver even light with excellent color rendering and low glare. The architectural design features of the Noonlight LED Troffers make them the perfect complement to office, education, health care, hospitality and retail interiors, ensuring that they are a practical option for a variety of settings.
Features:
The CLASS P Programmable LED Driver is a versatile lighting solution that offers 4-step power adjustment, high color rendering index (CRI>80), and CCT Tuning options with 3000K, 3500K, 4000K, and 5000K modes.
The best part is that it minimizes stock, as 1 SKU can cover up to 16 models. The DLC5.1 Premium LED Troffer is a great auxiliary to connect low voltage sensors, BLE or other IOT networks. Moreover, the 2 depth design options - Super Thin and Standard - allow you to choose the perfect fit for your needs.
The CLASS P Programmable LED Driver is 5-100% 0-10V dimmable and flicker-free, ensuring top-quality lighting. Not only that, the built-in PIR Sensor and Motion Sensor Options add to the convenience and functionality of the product. Additionally, the 2x4FT Wolumetric LED Troffer Light comes with a built-in Emergency Driver Option.
The CLASS P Programmable LED Driver also delivers long-lasting performance with an L70 life span of over 50,000 hours and a 5-year warranty to ensure peace of mind.
Technical Parameters:
| Product Name |
LED Troffer Lights |
| Material |
White Powder Painted Steel |
| Power |
25W / 30W / 36W / 40W |
| Input Voltage |
100-277VAC Or 100-347VAC Or 347-480VAC |
| Color Temperature |
3000K / 3500K 4000K / 5000K |
| CRI |
>80 |
| Beam Angle |
120° |
| Lifespan |
50,000hrs |
| Warranty |
5 Years |
| Application |
Schools, Offices, Conference Room, Hospitality Etc. |
Accessories
4W OR 8W UL LISTED EMERGENCY BACKUP
- Protection:
- Input over-current Protection (Fuse)
- Output over-voltage Protection
- Output Low Voltage Protection
- Output Short Circuit Protection
- Working Temp.: 10℃ to 50℃
Advantages
CCT AND WATTAGE SELECTIVE TROFFER LIGHT
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
| Power Adjustable Slide Switch Position |
| Size/Positon |
0 |
1 |
2 |
3 |
| 2X2 |
40W |
30W |
25W |
20W
|
Applications:
Schools, offices, conference room, hospitality etc.
