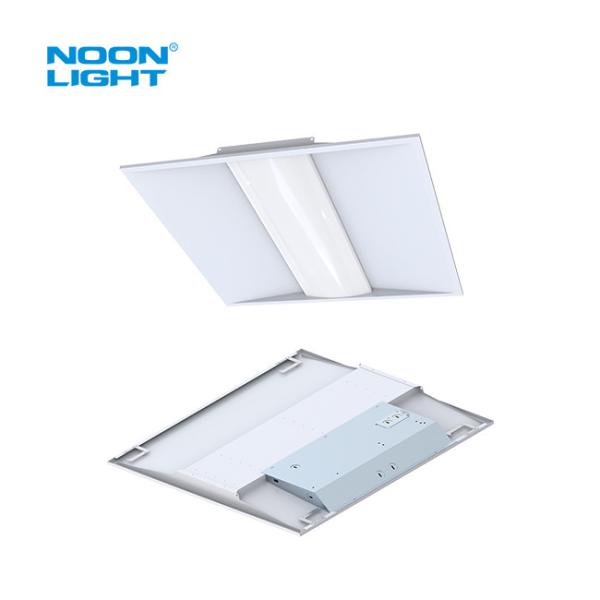

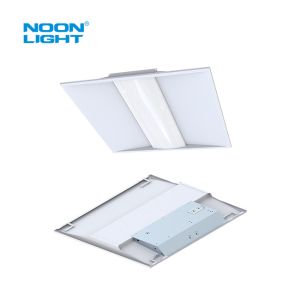

Product Description:
Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.
Frosted lens delivers even light with excellent color rendering and low glare, while its architectural design features make it the perfect complement to office, education, health care, hospitality and retail interiors.
Noonlight Layered Design LED Troffer, 4CCT and 4wattage Selectable technology enables Clients to choose the appropriate color temperature and lumen output that is utmost satisfying their lighting requirements. The lampshade is made of frosted material to achieve evenly distributed light without creating too much glare, and it's designed artistically. As a result, this product is suitable for lighting application in many areas, such as office, education facility, medical facility, hotel, mall or retail store etc.
Features:
This LED troffer light has the ability to deliver up to 125 lumens per watt, making it extraordinarily energy efficient. It has 5-100% 0-10V dimmable, flicker free, “dim to off” capabilities as well. The depth design of the light is adjustable between super thin and standard, so it can suit a wide variety of installations. It also has the option of being installed with either a PIR sensor, motion sensor, or both. The adjustable CCT troffer light also has an emergency driver option and the capability to cover 16 models with one single SKU. An auxiliary port is included to easily connect low voltage sensor, BLE, or any other IOT network. Its life span is 70,000 hours and is going to come with a 5 year warranty.
Technical Parameters:
| Parameter |
Details |
| Product Name |
LED Troffer Lights |
| Material |
White Powder Painted Steel |
| Input Voltage |
100-277VAC Or 100-347VAC Or 347-480VAC |
| Luminous Flux |
2000LM-3375LM |
| Lifespan |
50,000hrs |
| Application |
Schools, Offices, Conference Room, Hospitality Etc. |
| CRI |
>80 |
| Warranty |
5 Years |
| Power |
16W / 20W / 24W / 27W |
| Beam Angle |
120° |
Accessories
8W or 15W UL Listed Emergency Backup
- Listed for field Instllation-UL924 & CSA C22.2 NO. 141
- Input: 120-277VAC/347VAC 50/60Hz
- Output: 25-50VDC, 8W or 15w
- Illumination Time: 90min
- Battery Type:Li-ion/Ni-MH
- Battery Recharge Time: 24Hrs
- Surge Protection: 3KV
- Protection:
- Input over-current Protection (Fuse)
- Output over-voltage Protection
- Output Low Voltage Protection
- Output Short Circuit Protection
- Working Temp.: 10℃ to 50℃
Applications:
Schools, offices, conference rooms, and hospitality environments, among others, are likely to greatly benefit from using tap-less, contact-less solutions. Such solutions enable easy and effective control options, without the need to constantly raise and manage cost burdens.
