Product Description:

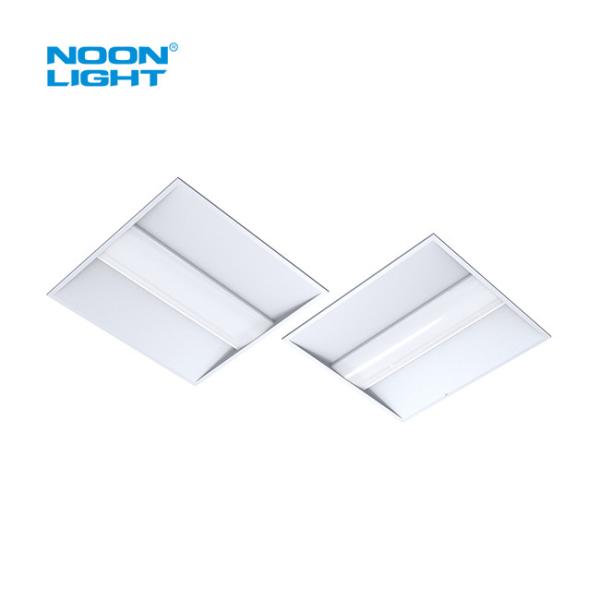

Noonlight LED Troffers are the super slim lighting fixtures to replace conventional fluorescent troffers in new or remodel construction.
Noonlight LED Troffer comes with CCT and wattage adjustable technology, allowing customers to customize the color temperature and lumen output to suit their own lighting requirements.
The frosted lens makes sure the light is distributed evenly with a high color rendering index and minimal glare. Its architectural design features also make it the perfect choice for a variety of interior applications, such as office, school, health care, hospitality, and retail.
Features:
Our LED Troffer Light series offer up to 125LM/W brightness for optimal lighting solutions. With our CLASS P Programmable LED Driver and 4 Step Power Adujustment, you can get an CRI above 80, with colors ranging from 3000K to 5000K in just one SKU. That's convenient!
Our DLC5.1 Premium LED Troffer offers an auxililary connection so you can connect to a sensor/BLE or other IOT network. Plus, we offer two depth design -- super thin and standard -- for different options. Our 5-100% 0-10V dimmable, flicker free, Dim to off feature offers better dimming and energy efficiency.
We also offer built-in PIR Sensors and Motion Sensor for even greater control. Plus, if you need emergency mode, our built-in emergency driver option will help you get it. And you won't ever need to worry about longevity as our L70 life is 50,000hrs with a 5 year warranty.
Specification:
| Model No |
DLC |
Input Voltage |
Wattage |
Lens |
CRI/CCT |
Rated Lumen @ 30K |
Rated
Efficancy
@ 30K
|
Viewing Angle |
Rated Lifetime |
Replacing |
|
N-TR-22-40-XX-WC1
|
P |
120-347VAC/
120 - 277VAC 0- 10V Isolated
Dimmable
|
40W |
Frosted |
Ra>80,
30K
35K
40K
50K
|
5000LM |
125LM/W |
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
|
N-TR-22-36-XX-WC1
|
P |
120-347VAC/
120 - 277VAC 0- 10V Isolated
Dimmable
|
36W |
Frosted |
Ra>80,
30K
35K
40K
50K
|
4500LM |
125LM/W |
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
|
N-TR-22-30-XX-WC1
|
P |
120-347VAC/
120 - 277VAC 0- 10V Isolated
Dimmable
|
30W |
Frosted |
Ra>80,
30K
35K
40K
50K
|
3750LM |
125LM/W |
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
|
N-TR-22-25-XX-WC1
|
P |
120-347VAC/
120 - 277VAC 0- 10V Isolated
Dimmable
|
25W |
Frosted |
Ra>80,
30K
35K
40K
50K
|
3125LM |
125LM/W |
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
Technical Parameters:
| Attribute |
Specification |
| Input Voltage |
100-277VAC, 100-347VAC, 347-480VAC |
| Power |
25W/30W/36W/40W |
| Lifespan |
50,000hrs |
| Color Temperature |
3000K / 3500K 4000K / 5000K |
| Beam Angle |
120° |
| Luminous Flux |
2500-5000LM |
| Material |
White Powder Painted Steel |
| Product Name |
LED Troffer Lights |
| Warranty |
5 Years |
| Application |
Office/School |
Applications:
Schools, offices, conference room, hospitality etc.
Customization:
We offer customised LED Troffer Lights from Noonlight. The model number is N-TR-2X2FT, and it is made in China. It is certified with DLC, ISO9001, Rosh, ETL. The minimum order quantity is 100pcs, and the price is negotiable. It comes with carton box packaging and delivery time is 30 day(s). The payment terms are T/T, AliPay, PayPal. The supply ability is 3000 pcs/day. The power is 25W/30W/36W/40W, and the color temperature is 3000K / 3500K 4000K / 5000K. The product name is LED Recessed Troffer Lights, LED Troffer Downlights, LED Troffer Lighting Fixture. The LED Troffer Lights have a lifespan of 50,000hrs and is perfect for both office and school.
Support and Services:
Technical Support:
- Provide technical advice on LED Troffer Lights product specifications, installation and operation.
- Provide in-depth troubleshooting and maintenance tips.
- Provide detailed test results to ensure optimal performance.
- Provide software updates.
