2x2FT Architectural Led Troffer Lights CCT And Power Tunable

Product Categories
Zhongshan NoonLighting Co., Ltd.
Contact Now

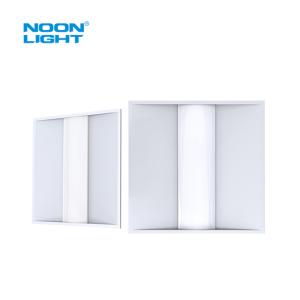

2x2FT Architectural Led Troffer Lights CCT And Power Tunable

Brand Name : Noonlight

Model Number : N-TR-2X2FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 50

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 20000 Piece/Pieces per Month

Delivery Time : 30 Working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : Led Troffer Lights

Input Voltage(V) : AC 120-277VAC or AC 120-347VAC

CCT : 30K/35K/40K/50K Tunable

Housing : 24 Gauge Steel, Gloss White Painting

Installation : Surface Mounted, Suspension Mounted

Certificate : ETL/DLC 5.1 Preminum

Contact Now

Stackable Version Volumetric LED Troffer CCT Tunbale and Wattage Adjustable

Features

  • 2 Depth Design: Super Thin & Standard
  • Troffer Light With EM Battery Backup 5-100% 0-10V dimmable, flicker free, Dim to off.
  • Adjustable CCT Troffer Light Built-in Emergency Driver Option.
  • L70>50,000hrs, 5 year warranty.

CCT and Power Tuanable LED Troffer Light Specification

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle Rated Lifetime Replacing

N-TR-24-40-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 40W

Frosted

Ra>80,

30K / 35K

40K / 50K

 5000LM

125

LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-34-XX-WC1

 P 34W 4250LM

N-TR-24-26-XX-WC1

 P 26W 3250LM
N-TR-24-20-XX-WC1 P

100-277VAC

or

100-347VAC

 20W Frosted

Ra>80,

30K / 35K

40K / 50K

 2500LM

125

LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-50-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 50W Frosted

Ra>80,

30K / 35K

40K / 50K

 6250LM

125

LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-45-XX-WC1

 P 45W 5625LM

N-TR-24-40-XX-WC1

 P 40W 5000LM

N-TR-24-30-XX-WC1

 P 30W 3750LM

Accessories

MICROWAVE MOTION SENSOR

2x2FT Architectural Led Troffer Lights CCT And Power Tunable

Sensitivity: 25%, 50%, 75%, 100%Default Setting/Setting

  • Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux,50lux, 100lux, 300lux, Disable
  • Hold Time: 3s, 30s, 90s, 5min, 10min, 30min
  • Twilgith Time: 10s, 5min, 10min, 30min, 1h, Infinite
  • Twilight Level: Off, 10%, 30%, 50%

4W OR 8W UL LISTED EMERGENCY BACKUP2x2FT Architectural Led Troffer Lights CCT And Power Tunable

  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

Advantages

CCT AND WATTAGE SELECTIVE TROFFER LIGHT
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

2x2FT Architectural Led Troffer Lights CCT And Power Tunable

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

2X4

40W

30W

25W

20W

Applications

Schools, offices, conference room, hospitality etc.

2x2FT Architectural Led Troffer Lights CCT And Power Tunable
