Product Description:

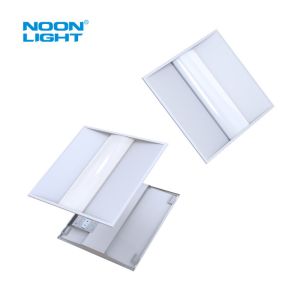

Noonlight presents the innovative Layered Design LED Troffer, equipped with 4CCT and 4wattage Selectable technology. This advanced feature allows customers to select their preferred color temperature and lumen output, providing the flexibility to meet their specific lighting needs.
The frosted lens of this troffer ensures a consistent and evenly distributed light, with superior color rendering and reduced glare. Designed with an architectural touch, this troffer is a seamless addition to office spaces, educational institutions, healthcare facilities, hotels, and retail interiors.
Features:
DLC5.1 Premium LED Troffer
Up to 135LM/W
CLASS P Programmable LED Driver
4 Step Power Adjustable
CRI>80, CCT Tunable
Available in 3000K, 3500K, 4000K, and 5000K
Minimizes stock with only 1 SKU needed to cover 16 models
Auxiliary for connecting low voltage sensor, BLE, or other IOT networks
2 Depth Design: Super Thin & Standard
5-100% 0-10V dimmable, flicker free, Dim to off
Built-in PIR Sensor and Motion Sensor Options
Built-in Emergency Driver Option
CCT Tunable LED Troffer with L70>50,000hrs and 5 year warranty
Technical Parameters:
| Product Name |
LED Troffer Lights |
| Power |
16W / 20W / 24W / 27W |
| Luminous Flux |
2000-2500-3000-3375LM |
| Beam Angle |
120° |
| Warranty |
5 Years |
| Color Temperature |
3000K / 3500K / 4000K / 5000K |
| CRI |
>80 |
| Application |
Schools, Offices, Conference Room, Hospitality Etc. |
| Material |
White Powder Painted Steel |
| Input Voltage |
100-277VAC Or 100-347VAC Or 347-480VAC |
Applications:
Schools, offices, conference room, hospitality etc.
Advantages
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
| Power Adjustable Slide Switch Position |
| Size/Positon |
0 |
1 |
2 |
3 |
| 1X4 |
27W |
24W |
20W |
16W |
| 40W |
36W |
30W |
25W |
| 2X2 |
27W |
24W |
20W |
16W |
| 40W |
36W |
30W |
25W |
| 2X4 |
40W |
34W |
26W |
20W |
| 50W |
45W |
40W |
30W |
