Product Description:

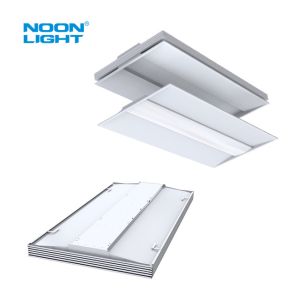

Noonlight LED Troffer Light Kits provide the perfect solution to upgrade outdated fluorescent troffers into energy-friendly LED systems. Each retrofit kit contains all the necessary parts to conduct a smooth installation without altering the current fixture mount.
Moreover, PIR, motion and BLE controls are optional, which can facilitate enhanced energy-efficiency and varied design options.
Emergency backup systems are also available for any emergency lighting needs.
Features:
We provide a maximum lumen of 125lm/w with an ultra-thin depth design. With CRI>80, CCT tunable, 3000K, 3500K, 4000K and 5000K available, our DLC5.1 premium LED troffer could minimize stock; only a single SKU is needed to cover a maximum of 16 models.
Combined with 5-100% 0-10V dimmable, “dim-to-off” and flicker free capacities, whilst offering wattage tunable troffer lights with built-in PIR sensor and motion sensor options. This, along with an L70>50,000hrs rating and a 5 year warranty, makes installation easier thanks to an auxiliary connection allowing it to connect with a low voltage sensor, BLE or other IOT networks.
Technical Parameters:
| Model No |
DLC |
Input Voltage |
Wattage |
Lens |
CRI/CCT |
Rated Lumen @ 30K |
Rated
Efficancy
@ 30K
|
Viewing Angle |
Rated Lifetime
|
Replacing
|
|
N-TR-24-40-XX-WC1
|
P |
120-347VAC/
120 - 277VAC 0- 10V Isolated
Dimmable
|
40W |
Frosted
|
Ra>80,
30K
35K
40K
50K
|
5000LM |
125LM/W
|
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
|
N-TR-24-34-XX-WC1
|
P |
120-347VAC/
120 - 277VAC 0- 10V Isolated
Dimmable
|
34W |
Frosted |
Ra>80,
30K
35K
40K
50K
|
4250LM |
125LM/W
|
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
|
N-TR-24-26-XX-WC1
|
P |
120-347VAC/
120 - 277VAC 0- 10V Isolated
Dimmable
|
26W |
Frosted
|
Ra>80,
30K
35K
40K
50K
|
3250LM
|
125LM/W
|
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
|
N-TR-24-20-XX-WC1
|
P |
100-277VAC
or
100-347VAC
|
20W |
Frosted
|
Ra>80,
30K
35K
40K
50K
|
2500LM
|
125LM/W
|
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
|
N-TR-24-50-XX-WC1
|
P |
100-277VAC
or
100-347VAC
|
24W |
Frosted |
Ra>80,
30K
35K
40K
50K
|
6250LM |
125LM/W |
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
| N-TR-24-45-XX-WC1 |
P |
100-277VAC
or
100-347VAC
|
45W |
Frosted |
Ra>80,
30K
35K
40K
50K
|
5625LM |
125LM/W |
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
| N-TR-24-40-XX-WC1 |
P |
100-277VAC
or
100-347VAC
|
40W |
Frosted |
Ra>80,
30K
35K
40K
50K
|
5000LM |
125LM/W |
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
| N-TR-24-30-XX-WC1 |
P |
100-277VAC
or
100-347VAC
|
30W |
Frosted |
Ra>80,
30K
35K
40K
50K
|
3750LM |
125LM/W |
120° |
L70>
50000hrs
|
60W - 200W
Incandescent
|
Applications:
Schools, offices, conference room, hospitality etc.
Customization:
Are you looking for a reliable LED Troffer Lights with superior quality? Look no further than Noonlight’s LED Troffer Lights!
Noonlight’s LED Troffer Lights have a brand name of Noonlight, model number N-TR-2X4FT, and are certified with DLC, ISO9001, Rosh, ETL. Our LED Troffer Lights are suitable for schools, offices, conference rooms, and hospitality applications. We also offer a minimum order quantity of 100pcs, with negotiable prices. Packaging details are included in a carton box, and delivery time of 30 days.
Our LED Troffer Lights are made of white powder painted steel, providing a luminous flux of 2500-3250-4250-5000LM, and color temperatures of 3000K / 3500K 4000K / 5000K. We accept payments by T/T, AliPay, and PayPal, and are able to supply up to 3000 pcs/day.
For LED Recessed Troffer Lights, LED Troffer Downlights, LED Troffer Downlights, and LED Troffer Lights, choose Noonlight’s LED Troffer Lights!
Certificate
