Product Description:

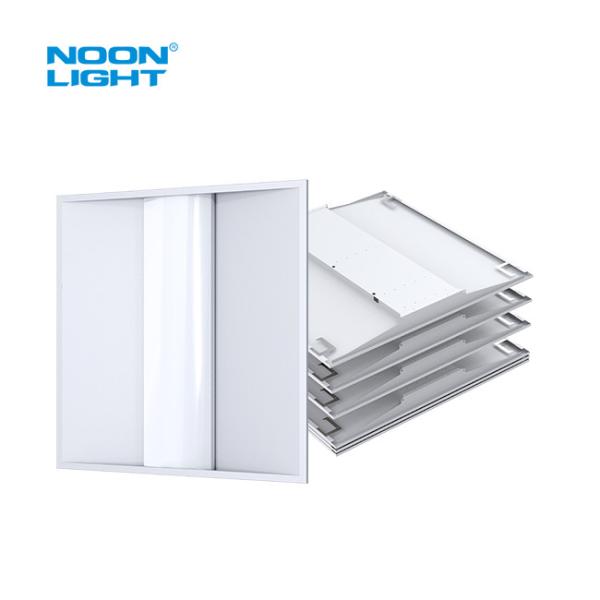

Noonlight LED Troffer Light Kits are the perfect answer to revive out-of-date fluorescent troffers into energy-saving, advanced LED systems. Each LED retrofit kit features all the items that are required for a straightforward installation with no need to change the existing fixture mounting.
Besides, optional PIR, Motion and BLE Controls are available in order to heighten energy conservation and to provide more design options.
Features:
UP TO 125LM/W: The wattage tunable troffer light has a soft, natural light with an ultra-high efficacy of up to 125LM/W, making it a highly efficient lighting source.
Depth Design: Designed to be optimally thin and standard in size, this LED troffer light combines aesthetic appeal and illumination properties in one.
Color Rendering Index & Color Temperature Adjustability: It offers a Color Rendering Index (CRI) of over 80 and is able to adjust its color temperature to 3000K, 3500K, 4000K and 5000K.
DLC5.1 Premium LED Troffer & Wide Range of Models: One SKU of the troffer light can cover a maximum of 16 models, allowing stores to keep a minimal inventory while still having a wide range of options to choose from.
Dimming and Flicker-free Features: The troffer light is 0-10V dimmable at 5-100%, making it capable of dimming to off, and is also flicker free.
Additional Options: Built-in PIR Sensor and Motion Sensor options are also available for the wattage tunable troffer light, allowing it to be suited for different intended purposes.
Long Lifespan & Warranty: It has a typical lifespan that is more than 50,000 hrs and comes with a five year warranty.
Auxiliary Feature: Lastly, an auxiliary feature is available to connect it to low voltage sensors or a BLE or other IOT networks on request.
Technical Parameters:
| Parameter |
Value |
| Product Name |
LED Troffer Lights |
| Power |
16W / 20W / 24W / 27W |
| Color Temperature |
3000K / 3500K 4000K / 5000K |
| Input Voltage |
100-277VAC Or 100-347VAC Or 347-480VAC |
| CRI |
>80 |
| Luminous Flux |
2000-3500-3000-3375LM |
| Beam Angle |
120° |
| Material |
White Powder Painted Steel |
| Warranty |
5 Years |
| Lifespan |
50,000hrs |
Certificate
Advantages
Specification:
Input: 12-24VDC, >8ma
0-10V DC output signal
Memeory function with one bottun commissiong.
IR Remote controller commission.
Detecton Range: Max. 6m in diameter.
Mounting Height: 3-4m.
Optional Daylight Harvesting
Applications:
Schools, offices, conference room, hospitality etc.
