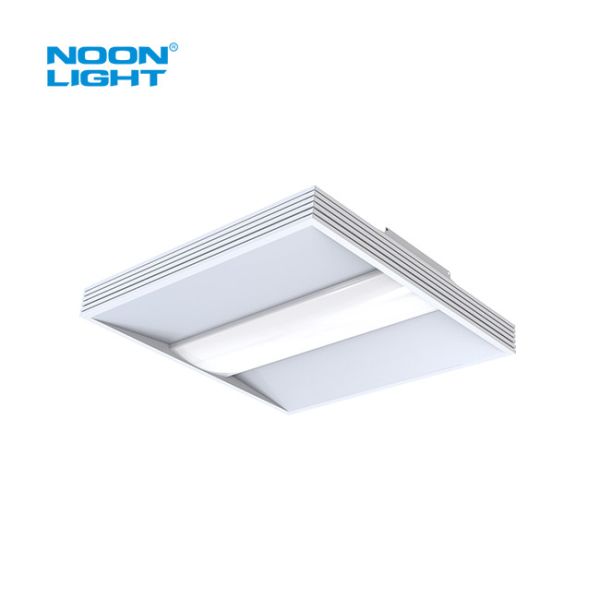

PIR BLE Sensor DLC5.1 LED Center Basket Troffer Powered By Slivair

Name: PIR BLE Sensor DLC51 LED Center Basket Troffer Powered By Slivair
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-TR

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 20000 Piece/Pieces per Month

Delivery Time : 28-30 Working days

Packaging Details : 8pcs/ctn or 6pcs/ctn

Product Name : DLC5.1 Premium LED Troffer

Power : 27W-24W-20W-16W Power Adjustable

Luminous Efficacy : 130 lm/W

Light Source : 2835 SMD, CRI>80

Warranty : 5 years

DLC Category : Direct Linear Ambient Luminaires

Contact Now

LED Center Basket Troffer with PIR+BLE Sensor powered by Slivair

Description

Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.

Features

Recessed Ultra-thin LED Troffer Light CCT and Power Tuanable LED Troffer Light UP TO 135LM/W
CLASS P Programmable LED Driver, 4 Step Power Adujustable,
CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
DLC5.1 Premium LED Troffer Minimize stock, 1 SKU can cover max. of 16 models.
An auxiliary to connect low voltage sensor/BLE or other IOT network.

CCT and Power Tuanable LED Troffer Light Specification

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-22-40-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	40W	Frosted	Ra>80, 30K 35K 40K 50K	5000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-36-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	36W	Frosted	Ra>80, 30K 35K 40K 50K	4500LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-30-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	30W	Frosted	Ra>80, 30K 35K 40K 50K	3750LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-25-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	25W	Frosted	Ra>80, 30K 35K 40K 50K	3125LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent

Accessories

TROFFER LIGHT WITH PIR SENSOR BI-LEVEL 12V PIR SENSOR/PIR SENSOR WITH DAYLIGHT HARVESTING

PIR BLE Sensor DLC5.1 LED Center Basket Troffer Powered By Slivair

Specification

Input: 12-24VDC, >8ma
0-10V DC output signal
Memeory function with one bottun commissiong.
IR Remote controller commission.
Detecton Range: Max. 6m in diameter.
Mounting Height: 3-4m.
Optional Daylight Harvesting

Advantages

CCT AND WATTAGE SELECTIVE TROFFER RETROFIT

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

PIR BLE Sensor DLC5.1 LED Center Basket Troffer Powered By Slivair

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
1X4	27W	24W	20W	16W
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

OEM/ODM Serivce
Photometric/IES file
PCB Design/Driver Design
Heat Management/Optical Design
Industry Design
Market Support
3D Printing
Multiple Listing/Private Label.

PIR BLE Sensor DLC5.1 LED Center Basket Troffer Powered By Slivair

Certificate

PIR BLE Sensor DLC5.1 LED Center Basket Troffer Powered By Slivair

CCT and Power Tuanable LED Troffer Light Applications

Schools, offices, conference room, hospitality etc.
