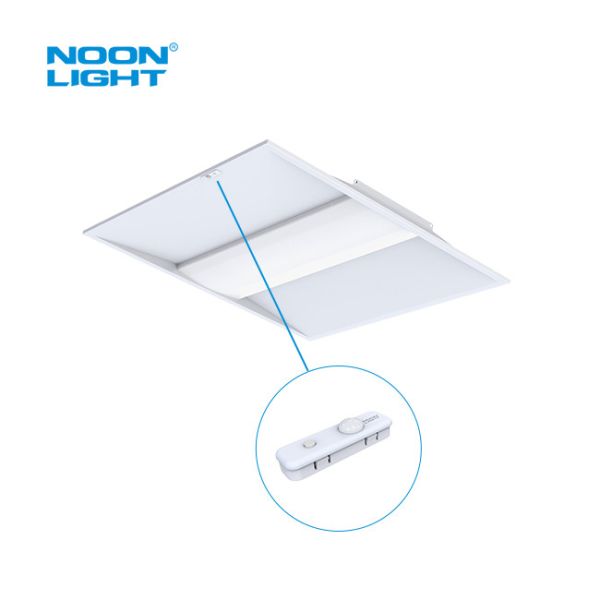

NoonLight 2x2 Troffer Lights 3500lm Adjustable Lumen 3000K 3500K 4000K 5000K Color

Name: NoonLight 2x2 Troffer Lights 3500lm Adjustable Lumen 3000K 3500K 4000K 5000K Color
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-TR-2X2FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 100

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 20,000pcs/Month

Delivery Time : 28-30 working days

Packaging Details : 6 or 8pcs/ctn

Product Name : NoonLight 2x2 troffer lights

Input Voltage(V) : AC120-277V or AC120-347V

Power : 27W-24W-20W-16W Power Adjustable

CCT : 30K-45K-40K-50K Selectable

Luminous Efficacy : 125LM/W

Housing : 24 Gauge Steel, Gloss White Painting, PC Lens

Light Source : 2835 SMD, CRI>80

Installation : Surface Mounted, Suspension Mounted

Warranty : 5 years

Certificate : ETL/DLC 5.1 Premium listed

DLC Category : Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires

Contact Now

2 x 2FT 2000-3500lm Adjustable Lumen With 3000K 3500K 4000K 5000K Color Switchable 90min UL 8W Emergency Backup Inclu

NoonLight 2x2 Troffer Lights 3500lm Adjustable Lumen 3000K 3500K 4000K 5000K Color

Noonlight Layered Design LED Troffer, 4CCT and 4wattage Selectable technology enables Clients to choose the appropriate color temperature and lumen output that is utmost satisfying their lighting requirements.

NoonLight 2x2 Troffer Lights 3500lm Adjustable Lumen 3000K 3500K 4000K 5000K Color

DLC5.1 premium LED Troffer UP TO 135LM/W
CLASS P Programmable LED Driver, 4 Step Power Adujustable,
CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
Minimize stock, 1 SKU can cover max. of 16 models.
An auxiliary to connect low voltage sensor/BLE or other IOT network.
2 Depth Design: Super Thin & Standard
5-100% 0-10V dimmable, flicker free, Dim to off.
Built-in PIR Sensor and Motion Sensor Options.
Built-in Emergency Driver Option.
CCT Tunable LED Troffer L70>50,000hrs, 5 year warranty.

NoonLight 2x2 Troffer Lights 3500lm Adjustable Lumen 3000K 3500K 4000K 5000K Color

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-22-27-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	27W	Frosted	Ra>80, 30K / 35K 40K / 50K	3375LM	125 LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-24-XX-WC1	P		24W			3000LM
N-TR-22-20-XX-WC1	P		20W			2500LM
N-TR-22-16-XX-WC1	P		16W			2000LM
N-TR-22-40-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	40W	Frosted	Ra>80, 30K / 35K 40K / 50K	5000LM	125 LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-36-XX-WC1	P		36W			4500LM
N-TR-22-30-XX-WC1	P		30W			3750LM
N-TR-22-25-XX-WC1	P		25W			3125LM

NoonLight 2x2 Troffer Lights 3500lm Adjustable Lumen 3000K 3500K 4000K 5000K Color

8W or 15W UL Listed Emergency Backup

Listed for field Instllation-UL924 & CSA C22.2 NO. 141
Input: 120-277VAC/347VAC 50/60Hz
Output: 25-50VDC, 8W or 15w
Illumination Time: 90min
Battery Type:Li-ion/Ni-MH
Battery Recharge Time: 24Hrs
Surge Protection: 3KV
Protection:
Input over-current Protection (Fuse)
Output over-voltage Protection
Output Low Voltage Protection
Output Short Circuit Protection
Working Temp.: 10℃ to 50℃

NoonLight 2x2 Troffer Lights 3500lm Adjustable Lumen 3000K 3500K 4000K 5000K Color

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

NoonLight 2x2 Troffer Lights 3500lm Adjustable Lumen 3000K 3500K 4000K 5000K Color

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
1X4	27W	24W	20W	16W
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

CCT Tunable Slide Switch Position
Position/Group	CCT
Low	3000K(Optional)
Middle 1	3500K
Middle 2	4000K
High	5000K

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

NoonLight 2x2 Troffer Lights 3500lm Adjustable Lumen 3000K 3500K 4000K 5000K Color

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

OEM/ODM Serivce
Photometric/IES file
PCB Design/Driver Design
Heat Management/Optical Design
Industry Design
Market Support
3D Printing
Multiple Listing/Private Label.

NoonLight 2x2 Troffer Lights 3500lm Adjustable Lumen 3000K 3500K 4000K 5000K Color

Schools, offices, conference room, hospitality etc.
