24 Gauge Steel Housing 2x2FT LED Center Basket Troffer Wattage and CCT Selectable

Name: 24 Gauge Steel Housing 2x2FT LED Center Basket Troffer Wattage and CCT Selectable
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-TR-2X2FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 50pcs

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 20000pcs/month

Delivery Time : 28-30 Working days

Packaging Details : 8pcs/ctn or 6pcs/ctn

Luminous Efficacy : 130 lm/W

Housing : 24 Gauge Steel, Gloss White Painting

Warranty : 5 years

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Direct Linear Ambient Luminaires

Illumination Time : 90min

Contact Now

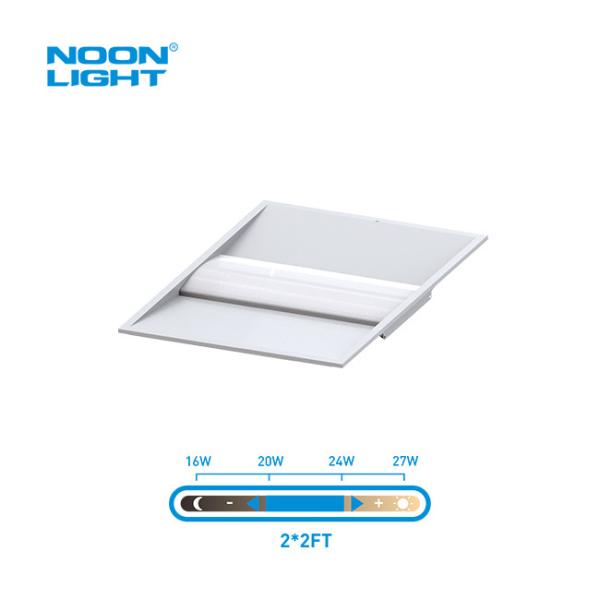

2x2FT LED Center Basket Troffer, Wattage and CCT Selectable Troffer light

Description

Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.

Specification

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-22-27-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	27W	Frosted	Ra>80, 30K 35K 40K 50K	3375LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-24-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	24W	Frosted	Ra>80, 30K 35K 40K 50K	3000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-20-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	20W	Frosted	Ra>80, 30K 35K 40K 50K	2500LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-16-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	16W	Frosted	Ra>80, 30K 35K 40K 50K	2000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent

CCT and Power Tuanable LED Troffer Light Accessories

24 Gauge Steel Housing 2x2FT LED Center Basket Troffer Wattage and CCT Selectable

4W or 8W UL Listed Emergency Backup

Listed for field Instllation-UL924 & CSA C22.2 NO. 141
Input: 120-277VAC/347VAC 50/60Hz
Output: 25-50VDC, 8W or 15w
Illumination Time: 90min
Battery Type:Li-ion/Ni-MH
Battery Recharge Time: 24Hrs
Surge Protection: 3KV

2x2FT LED CCT Selectable Troffer Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

24 Gauge Steel Housing 2x2FT LED Center Basket Troffer Wattage and CCT Selectable

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
1X4	27W	24W	20W	16W
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

CCT Tunable Slide Switch Position
Position/Group	CCT
Low	3000K(Optional)
Middle 1	3500K
Middle 2	4000K
High	5000K

Manufacturing Abilities

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

24 Gauge Steel Housing 2x2FT LED Center Basket Troffer Wattage and CCT Selectable

Certificate

24 Gauge Steel Housing 2x2FT LED Center Basket Troffer Wattage and CCT Selectable

CCT and Power Tuanable LED Troffer Light Applications

Schools, offices, conference room, hospitality etc.
