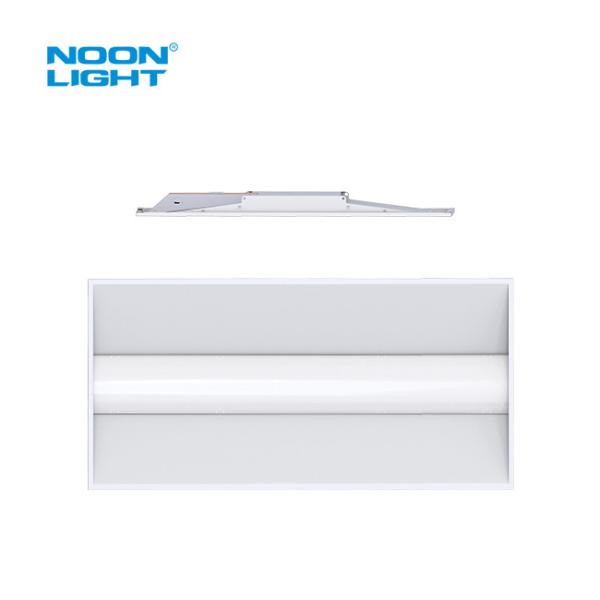

DLC 5.1 Premium Listed LED Troffer Light 2x4FT CCT And Power Tunable

Name: DLC 51 Premium Listed LED Troffer Light 2x4FT CCT And Power Tunable
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-TR-2X4FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 50pcs

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 20,000pcs/month

Delivery Time : 28-30 Working days

Packaging Details : 8pcs/ctn or 6pcs/ctn

Input Voltage(V) : AC 120-277VAC or AC 120-347VAC

Power : 40W-34W-26W-20W Power Adjustable

Luminous Efficacy : 130 lm/W

Installation : Surface Mounted, Suspension Mounted

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Stairwell and Passageway Luminaires

Contact Now

Troffer retrofit with EM battery backup

CCT and Power Tuanable LED Troffer Light Description

Noonlight LED Troffer Light Kits are the ideal solution to update outdated fluorescent troffers into energy-efficient, contemporary LED systems. Each LED retrofit kit includes everything needed for a seamless installation without modifying the existing fixture mounting.
Optional PIR, Motion and BLE Controls are avaiable for further enhance energy savings and design flexibility.
Optional Emergency Backups can be integrated for emergency purpose lighting.

Features

2x4FT Wolumetric LED Troffer Light CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
DLC5.1 Premium LED Troffer Minimize stock, 1 SKU can cover max. of 16 models.
5-100% 0-10V dimmable, flicker free, Dim to off.
Wattage Tunable Troffer Light Built-in PIR Sensor and Motion Sensor Options.
Built-in Emergency Driver Option.
Wattage Tunable Troffer Light L70>50,000hrs, 5 year warranty.

CCT and Power Tuanable LED Troffer Light Specification

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-24-40-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	40W	Frosted	Ra>80, 30K 35K 40K 50K	5000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-24-34-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	34W	Frosted	Ra>80, 30K 35K 40K 50K	4250LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-24-26-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	26W	Frosted	Ra>80, 30K 35K 40K 50K	3250LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-24-20-XX-WC1	P	100-277VAC or 100-347VAC	20W	Frosted	Ra>80, 30K 35K 40K 50K	2500LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-24-50-XX-WC1	P	100-277VAC or 100-347VAC	24W	Frosted	Ra>80, 30K 35K 40K 50K	6250LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-24-45-XX-WC1	P	100-277VAC or 100-347VAC	45W	Frosted	Ra>80, 30K 35K 40K 50K	5625LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-24-40-XX-WC1	P	100-277VAC or 100-347VAC	40W	Frosted	Ra>80, 30K 35K 40K 50K	5000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-24-30-XX-WC1	P	100-277VAC or 100-347VAC	30W	Frosted	Ra>80, 30K 35K 40K 50K	3750LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent

Advantages

TROFFER LIGHT WITH MOTION SENSOR BI-LEVEL 12V PIR SENSOR/PIR SENSOR WITH DAYLIGHT HARVESTING

DLC 5.1 Premium Listed LED Troffer Light 2x4FT CCT And Power Tunable

Specification:

Input: 12-24VDC, >8ma
0-10V DC output signal
Memeory function with one bottun commissiong.
IR Remote controller commission.
Detecton Range: Max. 6m in diameter.
Mounting Height: 3-4m.
Optional Daylight Harvesting

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

DLC 5.1 Premium Listed LED Troffer Light 2x4FT CCT And Power Tunable

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
1X4	27W	24W	20W	16W
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

CCT Tunable Slide Switch Position
Position/Group	CCT
Low	3000K(Optional)
Middle 1	3500K
Middle 2	4000K
High	5000K

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

OEM/ODM Serivce
Multiple Listing/Private Label.

DLC 5.1 Premium Listed LED Troffer Light 2x4FT CCT And Power Tunable

Certificate

DLC 5.1 Premium Listed LED Troffer Light 2x4FT CCT And Power Tunable

CCT and Power Tuanable LED Troffer Light Applications

Schools, offices, conference room, hospitality etc.
