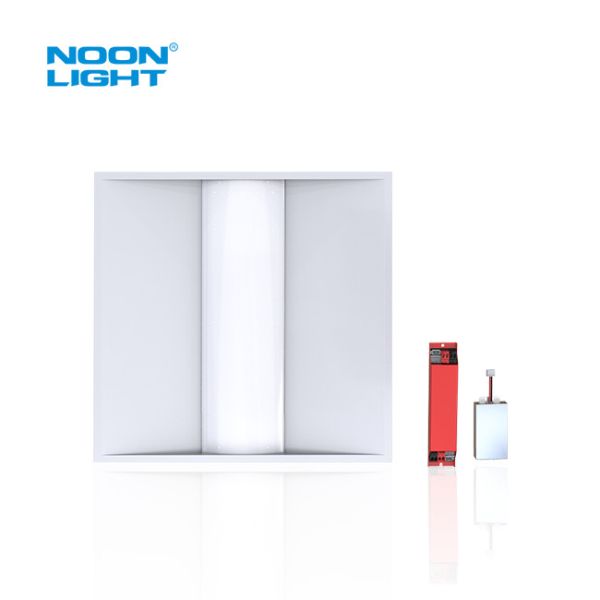

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

Brand Name : Noonlight

Model Number : N-TR-2X2FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 100

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 20,000pcs/Month

Delivery Time : 28-30 working days

Packaging Details : 6 or 8pcs/ctn

Product Name : DLC5.1 Premium 2x2FT 4CCT & 4Power Tunable LED Troffer

Input Voltage(V) : AC120-277V or AC120-347V

Power : 27W-24W-20W-16W Power Adjustable

CCT : 30K-45K-40K-50K Selectable

Luminous Efficacy : 125LM/W

Light Source : 2835 SMD, CRI>80

Installation : Surface Mounted, Suspension Mounted

Certificate : ETL/DLC 5.1 Premium listed

DLC Category : Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires

Service : OEM/ODM available

Installaion : Easy and saving labor cost

Contact Now

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

  • Noonlight Layered Design LED Troffer, 4CCT and 4wattage Selectable technology enables Clients to choose the appropriate color temperature and lumen output that is utmost satisfying their lighting requirements.

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

  • 2x2ft LED Troffer Lighting effect upto 130LM/W
  • 4 Steps Wattage Selectable
  • CCT 30K-35K-40K-50K Tunable
  • 2 Depth Design: Super Thin & Standard
  • 0-10V dimmable, flicker free, Dim to off.
  • Built-in PIR Sensor and Motion Sensor Options.
  • DLC5.1 Premium LED Troffer Built-in 90mins Emergency backup
  • L70>50,000hrs, 5 year warranty.

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle Rated Lifetime Replacing

N-TR-22-27-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 27W Frosted

Ra>80,

30K / 35K

40K / 50K

 3375LM

125

LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-24-XX-WC1

 P 24W 3000LM

N-TR-22-20-XX-WC1

 P 20W 2500LM

N-TR-22-16-XX-WC1

 P 16W 2000LM

N-TR-22-40-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 40W Frosted

Ra>80,

30K / 35K

40K / 50K

 5000LM

125

LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-36-XX-WC1

 P 36W 4500LM

N-TR-22-30-XX-WC1

 P 30W 3750LM

N-TR-22-25-XX-WC1

 P 25W 3125LM

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

8W or 15W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 8W or 15w
  • Illumination Time: 90min
  • Battery Type:Li-ion/Ni-MH
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup 2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup 2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

1X4

27W

24W

20W

16W

2X2

27W

24W

20W

16W

2X4

40W

30W

25W

20W

CCT Tunable Slide Switch Position

Position/Group

CCT

Low

3000K(Optional)

Middle 1

3500K

Middle 2

4000K

High

5000K

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup


2x2 FT 4CCT 4Power Tunable LED Troffer Lights 125LM/W With 90mins EM Backup

Schools, offices, conference room, hospitality etc.
