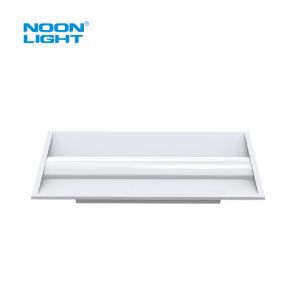

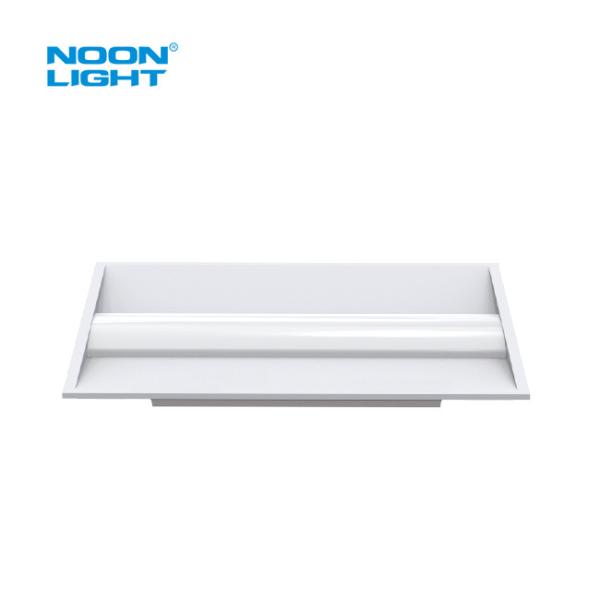

2x2FT CCT Tunable LED Troffer Lights 30K / 35K / 40K / 50K

Name: 2x2FT CCT Tunable LED Troffer Lights 30K 35K 40K 50K
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-TR-2X2FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : 2x2FT CCT Tunable LED Troffer Lights

CCT : 30K/35K/40K/50K Tunable

Luminous Efficacy : 130 lm/W

Housing : 24 Gauge Steel, Gloss White Painting, PC Lens

Light Source : 2835 SMD, CRI>80

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires

Contact Now

2x2FT CCT Tunable LED Troffer Lights

Description

Noonlight LED Troffer Retrofit Kits are the ideal solution to update outdated fluorescent troffers into energy-efficient, contemporary LED systems. Each LED retrofit kit includes everything needed for a seamless installation without modifying the existing fixture mounting.
Super sleek fixture allows the installers no need to remove the fluorescent fixture mounting from the ceiling.
Integral with new trend of field-adjustable functions provide our customers greater flexibility on wattages and color temperatures.

Features

DLC5.1 Premium LED Troffer Lights UP TO 130LM/W
CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
Minimize stock, 1 SKU can cover max. of 16 models.
An auxiliary to connect low voltage sensor/BLE or other IOT network.
2 Depth Design: Super Thin & Standard
Built-in PIR Sensor and Motion Sensor Options.
Adjustable CCT Troffer Lights Built-in Emergency Driver Option.

Specification

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-22-27-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	27W	Frosted	Ra>80, 30K 35K 40K 50K	3375LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-24-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	24W	Frosted	Ra>80, 30K 35K 40K 50K	3000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-20-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	20W	Frosted	Ra>80, 30K 35K 40K 50K	2500LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-16-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	16W	Frosted	Ra>80, 30K 35K 40K 50K	2000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent

CCT and Power Tuanable LED Troffer Light Installation

Suitable for surface mounted, suspended mounted.

2x2FT CCT Tunable LED Troffer Lights 30K / 35K / 40K / 50K

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
1X4	27W	24W	20W	16W
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

CCT Tunable Slide Switch Position
Position/Group	CCT
Low	3000K(Optional)
Middle 1	3500K
Middle 2	4000K
High	5000K

Manufacturing Abilities

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

2x2FT CCT Tunable LED Troffer Lights 30K / 35K / 40K / 50K

Certificate

2x2FT CCT Tunable LED Troffer Lights 30K / 35K / 40K / 50K

Applications

Schools, offices, conference room, hospitality etc.
