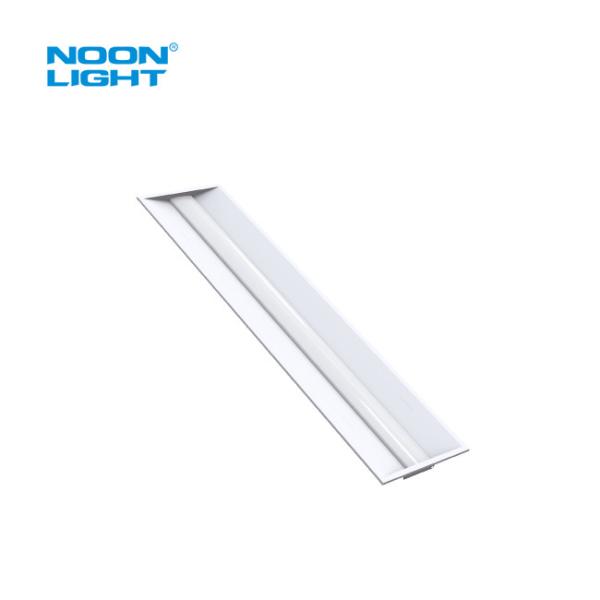

1x4F Power Selective LED Troffer Lights Suspension Mounted

Name: 1x4F Power Selective LED Troffer Lights Suspension Mounted
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-TR-1X4FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : DLC5.1 Premium LED Troffer

CCT : 30K/35K/40K/50K Tunable

Luminous Efficacy : 130 lm/W

Installation : Surface Mounted, Suspension Mounted

Warranty : 5 years

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Direct Linear Ambient Luminaires

Contact Now

1x4F Power selective LED Troffer Lights

Description

Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.

CCT and Power Tuanable LED Troffer Light Features

2x4ft LED Troffer Lights UP TO 135LM/W
CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
An auxiliary to connect low voltage sensor/BLE or other IOT network.
5-100% 0-10V dimmable, flicker free, Dim to off.
DLC5.1 premium LED Troffer Retrofit Built-in Emergency Driver Option.
L70>50,000hrs, 5 year warranty.

Specification

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-14-27-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	27W	Frosted	Ra>80, 30K 35K 40K 50K	3375LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-24-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	24W	Frosted	Ra>80, 30K 35K 40K 50K	3000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-20-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	20W	Frosted	Ra>80, 30K 35K 40K 50K	2500LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-16-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	16W	Frosted	Ra>80, 30K 35K 40K 50K	2000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

1x4F Power Selective LED Troffer Lights Suspension Mounted

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
1X4	27W	24W	20W	16W
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

CCT Tunable Slide Switch Position
Position/Group	CCT
Low	3000K(Optional)
Middle 1	3500K
Middle 2	4000K
High	5000K

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

OEM/ODM Serivce
Photometric/IES file
PCB Design/Driver Design
Heat Management/Optical Design
Industry Design
Market Support
3D Printing
Multiple Listing/Private Label.

1x4F Power Selective LED Troffer Lights Suspension Mounted

Certificate

1x4F Power Selective LED Troffer Lights Suspension Mounted

CCT and Power Tuanable LED Troffer Light Applications

Schools, offices, conference room, hospitality etc.
