Home > LED Troffer Lights >

DLC Certified LED Troffer Lights 1FT X 4FT 4 Step Power Adujustable

Product Categories
Zhongshan NoonLighting Co., Ltd.
Contact Now

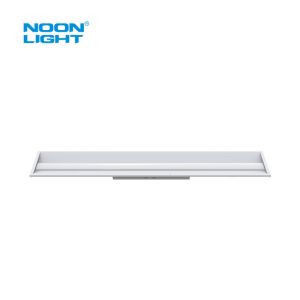

DLC Certified LED Troffer Lights 1FT X 4FT 4 Step Power Adujustable

Brand Name : Noonlight

Model Number : N-TR-1X4FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : Bi-level PIR Sensor Integrated 1FT x 4FT 128w Equivalent CENTRAL BASKET LED TROFFER LIGHT CCT & POWER ADJUSTABLE

Light Source : 2835 SMD, CRI>80

Installation : Surface Mounted, Suspension Mounted

Warranty : 5 years

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires

Contact Now

Bi-level PIR Sensor Integrated 1FT x 4FT 128w Equivalent CENTRAL BASKET LED TROFFER LIGHT CCT & POWER ADJUSTABLE

DLC Certified LED Troffer Lights 1FT X 4FT 4 Step Power Adujustable

  • Frosted lens delivers even light with excellent color rendering and low glare, while its architectural design features make it the perfect complement to office, education, health care, hospitality and retail interiors.

DLC Certified LED Troffer Lights 1FT X 4FT 4 Step Power Adujustable

  • DLC5.1 premium LED Troffer CLASS P Programmable LED Driver, 4 Step Power Adujustable,
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • 2 Depth Design: Super Thin & Standard
  • Built-in PIR Sensor and Motion Sensor Options.
  • 1x4ft LED Troffer Built-in Emergency Driver Option.
  • L70>50,000hrs, 5 year warranty.

DLC Certified LED Troffer Lights 1FT X 4FT 4 Step Power Adujustable

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

Rated Lifetime

Replacing

N-TR-22-27-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 27W Frosted

Ra>80,

30K

35K

40K

50K

3375LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-24-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 24W Frosted

Ra>80,

30K

35K

40K

50K

3000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-20-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 20W Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-16-XX-WC1-

[BLANK,HV]-

[S1, S2, S3, S4, S5, S6, BLANK)--[SL, F]

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 16W Frosted

Ra>80,

30K

35K

40K

50K

2000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

DLC Certified LED Troffer Lights 1FT X 4FT 4 Step Power Adujustable

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

DLC Certified LED Troffer Lights 1FT X 4FT 4 Step Power Adujustable

Specification

  • Input: 12-24VDC, >8ma
  • 0-10V DC output signal
  • Memeory function with one bottun commissiong.
  • IR Remote controller commission.
  • Detecton Range: Max. 6m in diameter.
  • Mounting Height: 3-4m.
  • Optional Daylight Harvesting

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
  • Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
  • Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
  • Twilight Level: 30%/off, 10%, 30%, 50%

DLC Certified LED Troffer Lights 1FT X 4FT 4 Step Power Adujustable

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

DLC Certified LED Troffer Lights 1FT X 4FT 4 Step Power Adujustable


DLC Certified LED Troffer Lights 1FT X 4FT 4 Step Power Adujustable

Schools, offices, conference room, hospitality etc.
