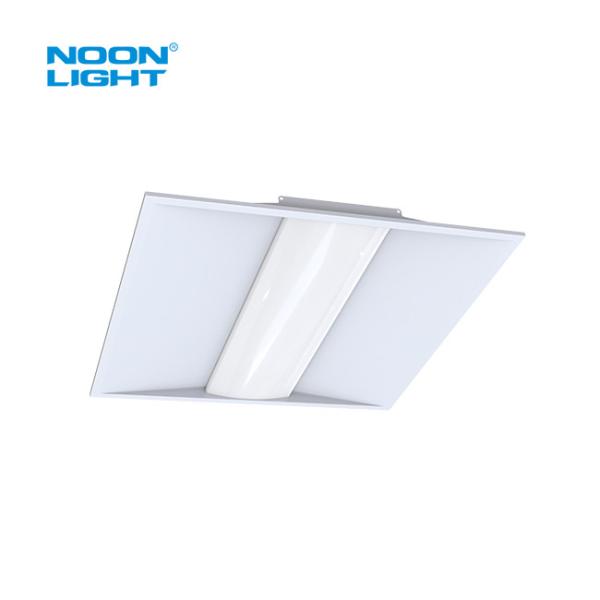

NoonLight Stackable Design LED Troffer Lights With Build In PIR / Motion Sensor

Product Categories
Zhongshan NoonLighting Co., Ltd.
Contact Now

NoonLight Stackable Design LED Troffer Lights With Build In PIR / Motion Sensor

Brand Name : Noonlight

Model Number : N-TR-2X2FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : DLC5.1 Premium LED Troffer

Input Voltage(V) : AC 120-277VAC or AC 120-347VAC

Power : 27W-24W-20W-16W Power Adjustable

CCT : 30K/35K/40K/50K Tunable

Luminous Efficacy : 130lm/W

Housing : 24 Gauge Steel, Gloss White Painting

Light Source : 2835 SMD, CRI>80

Installation : Surface Mounted, Suspension Mounted

Warranty : 5 years

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Direct Linear Ambient Luminaires

Contact Now

Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.

Features

  • 2x2t LED Troffer Light UP TO 135LM/W
  • CLASS P Programmable LED Driver, 4 Step Power Adujustable,
  • CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • 2x4FT Wolumetric LED Troffer Light Built-in Emergency Driver Option.
  • L70>50,000hrs, 5 year warranty.

Specification

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

Rated Lifetime

Replacing

N-TR-22-27-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 27W Frosted

Ra>80,

30K

35K

40K

50K

3375LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-24-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 24W Frosted

Ra>80,

30K

35K

40K

50K

3000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-20-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 20W Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-16-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 16W Frosted

Ra>80,

30K

35K

40K

50K

2000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

Accessories

NoonLight Stackable Design LED Troffer Lights With Build In PIR / Motion Sensor

8W or 15W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 8W or 15w
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

NoonLight Stackable Design LED Troffer Lights With Build In PIR / Motion Sensor

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

1X4

27W

24W

20W

16W

2X2

27W

24W

20W

16W

2X4

40W

30W

25W

20W

Manufacturing Abilities

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

NoonLight Stackable Design LED Troffer Lights With Build In PIR / Motion Sensor

CCT and Power Tuanable LED Troffer Light Applications

Schools, offices, conference room, hospitality etc.
