2ftX4ft White Integrated Led Drop Ceiling Troffer Light With 5000 Lumens

Product Categories
Zhongshan NoonLighting Co., Ltd.
Contact Now

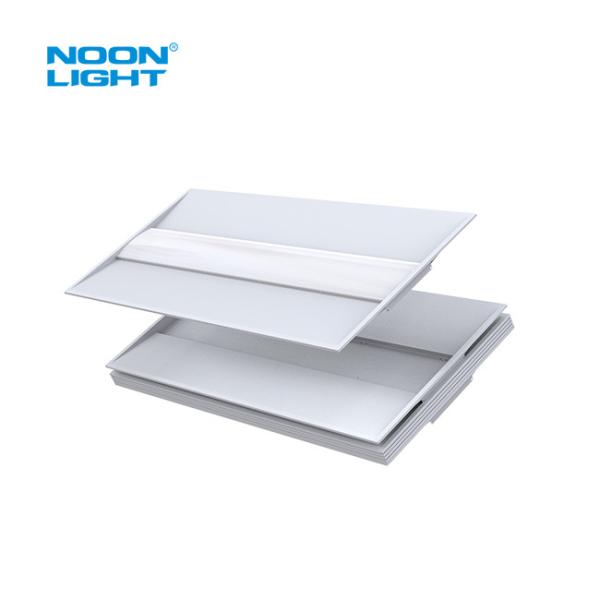

2ftX4ft White Integrated Led Drop Ceiling Troffer Light With 5000 Lumens

Brand Name : Noonlight

Model Number : N-TR-2X4FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Power : 40W-34W-26W-20W Power Adjustable

CCT : 30K/35K/40K/50K Tunable

Housing : 24 Gauge Steel, Gloss White Painting

Installation : Surface Mounted, Suspension Mounted

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires

Contact Now

2ft x 4ft white integrated led drop ceiling troffer light with 5000 lumens

Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.

Features

  • DLC5.1 Premium LED Troffer Light An Auxiliary to Connect Low Voltage Sensor/BLE or other IOT network.
  • 2 Depth Design: Super Thin & Standard
  • Built-in Emergency Driver Option.
  • 2x4FT Wolumetric LED Troffer Light L70>50,000hrs, 5 year warranty.

Specification

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

Rated Lifetime

Replacing

N-TR-24-40-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 40W

Frosted

Ra>80,

30K

35K

40K

50K

 5000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-34-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 34W Frosted

Ra>80,

30K

35K

40K

50K

 4250LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-25-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 25W

Frosted

Ra>80,

30K

35K

40K

50K

3500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-24-20-XX-WC1

 P

100-277VAC

or

100-347VAC

 20W

Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

Accessories

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

2ftX4ft White Integrated Led Drop Ceiling Troffer Light With 5000 Lumens

Specification

  • Input: 12-24VDC, >8ma
  • 0-10V DC output signal
  • Memeory function with one bottun commissiong.
  • IR Remote controller commission.
  • Detecton Range: Max. 6m in diameter.
  • Mounting Height: 3-4m.
  • Optional Daylight Harvesting

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

2ftX4ft White Integrated Led Drop Ceiling Troffer Light With 5000 Lumens

CCT Tunable Slide Switch Position

Position/Group

CCT

Low

3000K(Optional)

Middle 1

3500K

Middle 2

4000K

High

5000K

Applications

Schools, offices, conference room, hospitality etc.
