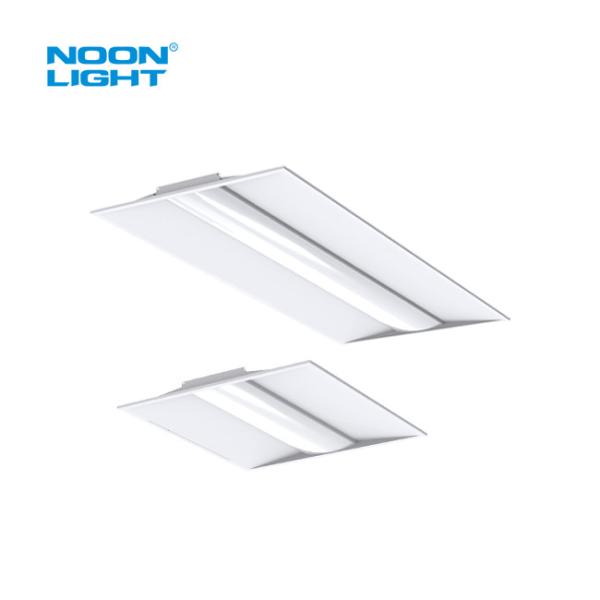

Office Dimmable Panel Light , 36w 50w Led Troffer Retrofit Kit

Name: Office Dimmable Panel Light 36w 50w Led Troffer Retrofit Kit
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-TR-2X2FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 50pcs

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 20000pcs/month

Delivery Time : 28-30 Working days

Packaging Details : 8pcs/ctn or 6pcs/ctn

Luminous Efficacy : 130 lm/W

Housing : 24 Gauge Steel, Gloss White Painting

Warranty : 5 years

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Direct Linear Ambient Luminaires

Sensitivity : 25%, 50%, 75%, 100%Default Setting/Setting

Contact Now

Office Dimmable Panel Light 36w 50w Retrofit Kit Led Troffer

Description

·CCT and Power Tuanable LED Troffer Light Minimize stock, 1 SKU can cover max. of 16 models.
·An auxiliary to connect low voltage sensor/BLE or other IOT network.
·2 Depth Design: Super Thin & Standard

Specification

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-24-40-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	40W	Frosted	Ra>80, 30K / 35K 40K / 50K	5000LM	125 LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-24-34-XX-WC1	P		34W			4250LM
N-TR-24-26-XX-WC1	P		26W			3250LM
N-TR-24-20-XX-WC1	P	100-277VAC or 100-347VAC	20W	Frosted	Ra>80, 30K / 35K 40K / 50K	2500LM	125 LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-40-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	40W	Frosted	Ra>80, 30K / 35K 40K / 50K	5000LM	125 LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-22-36-XX-WC1	P		36W			4500LM
N-TR-22-30-XX-WC1	P		30W			3750LM
N-TR-22-25-XX-WC1	P		25W			3125LM

DLC5.1 premium LED Troffer Retrofit MICROWAVE MOTION SENSOR

Office Dimmable Panel Light , 36w 50w Led Troffer Retrofit Kit

Sensitivity: 25%, 50%, 75%, 100%Default Setting/Setting

Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux,50lux, 100lux, 300lux, Disable
Hold Time: 3s, 30s, 90s, 5min, 10min, 30min
Twilgith Time: 10s, 5min, 10min, 30min, 1h, Infinite
Twilight Level: Off, 10%, 30%, 50%

2x2FT LED Troffer Light Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Office Dimmable Panel Light , 36w 50w Led Troffer Retrofit Kit

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

Manufacturing Abilities

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

Office Dimmable Panel Light , 36w 50w Led Troffer Retrofit Kit

CCT and Power Tuanable LED Troffer Light Certificate

Office Dimmable Panel Light , 36w 50w Led Troffer Retrofit Kit
