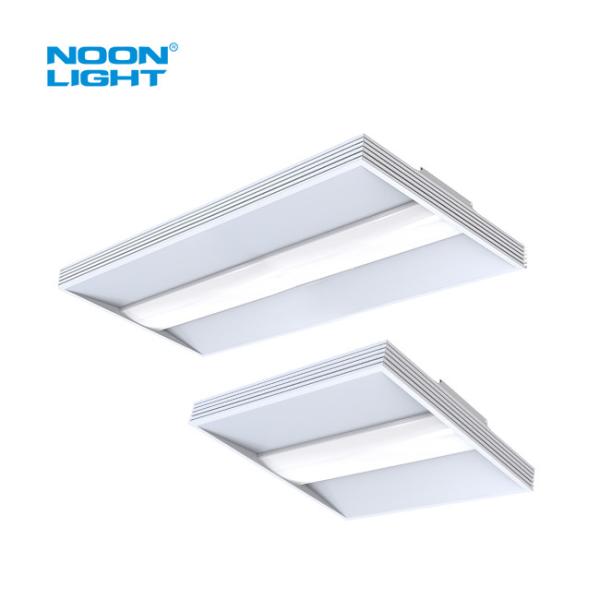

2835 SMD Led Troffer Lights , 2ft 4ft Led Volumetric Troffer

Brand Name : Noonlight

Model Number : N-TR-2X4FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 50pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 20,000pcs/month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : LED Troffer Lights with Selectable CCT

Input Voltage(V) : AC 120-277VAC or AC 120-347VAC

Power : 27W-24W-20W-16W Power Adjustable

Housing : 24 Gauge Steel, Gloss White Painting

Light Source : 2835 SMD, CRI>80

Installation : Surface Mounted, Suspension Mounted

Contact Now

Led Troffer Light led panel light 2ft 4ft LED VOLUMETRIC TROFFER

Features

  • Minimize stock, 1 SKU can cover max. of 16 models.
  • An auxiliary to connect low voltage sensor/BLE or other IOT network.
  • CCT and Power Tuanable LED Troffer Light Built-in PIR Sensor and Motion Sensor Options.

Specification

N-TR-14-40 40W 36W 30W 25W
30K 35K 40K 50K
Rated Lumen
@ 30K		 5000LM 4500LM 3750LM 3125LM
N-TR-22-40 40W 36W 30W 25W
30K 35K 40K 50K
Rated Lumen
@ 30K		 5000LM 4500LM 3750LM 3125LM
N-TR-24-50 50W 45W 40W 30W
30K 35K 40K 50K
Rated Lumen
@ 30K		 6250LM 5625LM 5000LM 3750LM
Rated Efficancy 125LM/W Lens Frosted
Input Voltage 120-347VAC/120 - 277VAC 0- 10V Isolated Dimmable
Warranty 5 Years Installation Surface Mounted, Suspension Mounted

Accessories

MICROWAVE MOTION SENSOR

2835 SMD Led Troffer Lights , 2ft 4ft Led Volumetric Troffer

Sensitivity: 25%, 50%, 75%, 100%Default Setting/Setting

  • Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux,50lux, 100lux, 300lux, Disable
  • Hold Time: 3s, 30s, 90s, 5min, 10min, 30min
  • Twilgith Time: 10s, 5min, 10min, 30min, 1h, Infinite
  • Twilight Level: Off, 10%, 30%, 50%

CCT and Power Tuanable LED Troffer Light Installation

Suitable for surface mounted, suspended mounted.

INSTRUCTION FOR SURFACE MOUNTING

·1.Disconnect or turn off power before installation,see step ①.
·2.Put the new volumetric troffer fixture onto the T grid,see step②
·3.Make the electrical connection to the fixture in accordance with local electrical code.Make all necessary wiringconnections,observing proper voltage and polarity.See step@ . Make sure the power feeds are put into the fixturejunction box.
·4 Once finished with the electrical connection, bend the earthquak clips to attach to the T grid.See step④
·5.Turn on power, the fixture will illuminate. See step .
