Field Fit 130lm/W LED Troffer Light Surface / Suspension Mounted

Brand Name : Noonlight

Model Number : N-TR-2X4FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : Field Fit LED Troffer Light

Input Voltage(V) : AC 120-277VAC or AC 120-347VAC

Luminous Efficacy : 130 lm/W

Installation : Surface Mounted, Suspension Mounted

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Direct Linear Ambient Luminaires & Stairwell and Passageway Luminaires

Contact Now

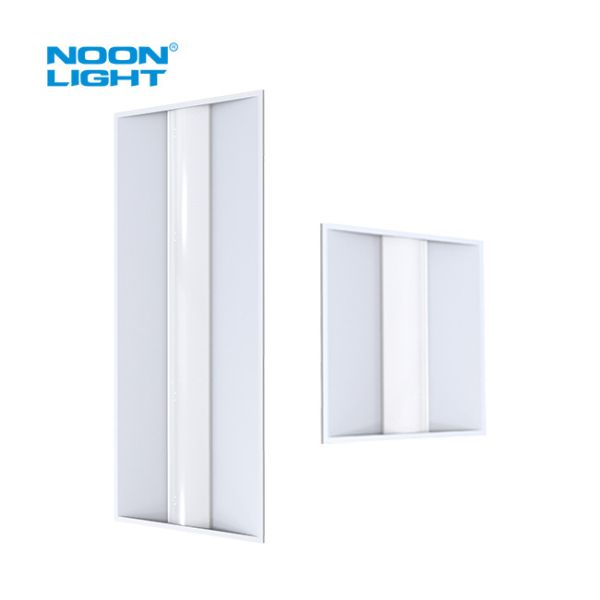

Field Fit LED Troffer Light

  • Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.

CCT and Power Tuanable LED Troffer Light Features

  • 2x4ft LED Troffer CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • Minimize stock, 1 SKU can cover max. of 16 models.
  • An auxiliary to connect low voltage sensor/BLE or other IOT network.
  • 2 Depth Design: Super Thin & Standard
  • DLC5.1 Premium LED Troffer Built-in Emergency Driver Option.
  • L70>50,000hrs, 5 year warranty.

Specification

DLC 5.1 Premium
N-TR-24-50 50W 45W 40W 30W
30K 35K 40K 50K
Rated Lumen
@ 30K		 6250LM 5625LM 5000LM 3750LM
N-TR-22-40 40W 36W 30W 25W
30K 35K 40K 50K
Rated Lumen
@ 30K		 5000LM 4500LM 3750LM 3125LM
Rated Efficancy 125LM/W Lens Frosted
Input Voltage 120-347VAC/120 - 277VAC 0- 10V Isolated Dimmable
Warranty 5 Years Installation Surface Mounted, Suspension Mounted

Accessories

8W or 15W UL Listed Emergency Backup

Field Fit 130lm/W LED Troffer Light Surface / Suspension Mounted

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 8W or 15W
  • Illumination Time: 90min
  • Battery Type:Li-ion/Ni-MH
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV

​

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Field Fit 130lm/W LED Troffer Light Surface / Suspension Mounted

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

2X4

50W

45W

40W

16W

2X2

40W

36W

30W

25W

Applications

Schools, offices, conference room, hospitality etc.
