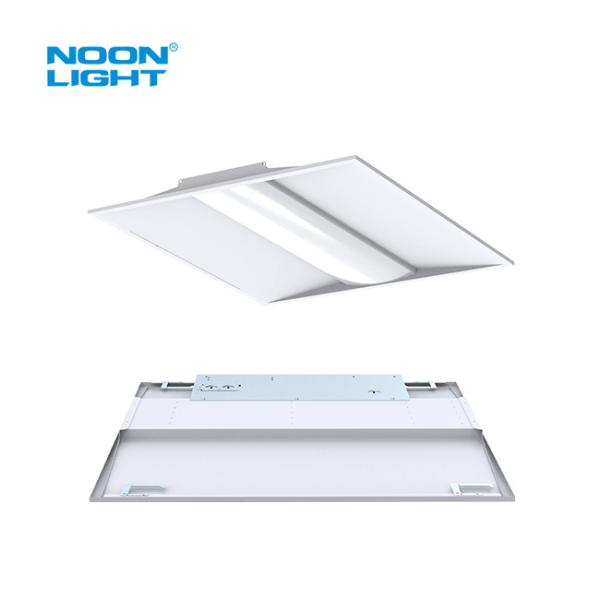

2x2 40 Watt Volumetric LED Troffer 3500K 5000 Lumens 120-277Vac

Brand Name : Noonlight

Model Number : N-TR-2X2FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : DLC5.1 Premium LED Troffer

Input Voltage(V) : AC 120-277VAC or AC 120-347VAC

Power : 27W-24W-20W-16W Power Adjustable

CCT : 30K/35K/40K/50K Tunable

Luminous Efficacy : 130 lm/W

Housing : 24 Gauge Steel, Gloss White Painting

Light Source : 2835 SMD, CRI>80

Installation : Surface Mounted, Suspension Mounted

Warranty : 5 years

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Direct Linear Ambient Luminaires

Contact Now

2x2 40 Watt LED Volumetric LED Troffer - 3500K - 5,000 Lumens - 120-277V

Description

  • Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.

CCT and Power Tuanable LED Troffer Light Features

  • 2x2t LED Troffer Light UP TO 135LM/W
  • CLASS P Programmable LED Driver, 4 Step Power Adujustable,
  • CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
  • 2 Depth Design: Super Thin & Standard
  • 5-100% 0-10V dimmable, flicker free, Dim to off.
  • Built-in PIR Sensor and Motion Sensor Options.
  • L70>50,000hrs, 5 year warranty.

Specification

Model No DLC Input Voltage Wattage Lens CRI/CCT Rated Lumen @ 30K

Rated

Efficancy

@ 30K

 Viewing Angle

Rated Lifetime

Replacing

N-TR-22-27-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 27W Frosted

Ra>80,

30K

35K

40K

50K

3375LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-24-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 24W Frosted

Ra>80,

30K

35K

40K

50K

3000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-20-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 20W Frosted

Ra>80,

30K

35K

40K

50K

2500LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

N-TR-22-16-XX-WC1

 P

120-347VAC/

120 - 277VAC 0- 10V Isolated

Dimmable

 16W Frosted

Ra>80,

30K

35K

40K

50K

2000LM

125LM/W

 120°

L70>

50000hrs

60W - 200W

Incandescent

Accessories

2x2 40 Watt Volumetric LED Troffer 3500K 5000 Lumens 120-277Vac

8W or 15W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 8W or 15w
  • Illumination Time: 90min
  • Battery Type:Li-ion/Ni-MH
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

Advantages

2x2 40 Watt Volumetric LED Troffer 3500K 5000 Lumens 120-277Vac

Power Adjustable Slide Switch Position

Size/Positon

0

1

2

3

1X4

27W

24W

20W

16W

2X2

27W

24W

20W

16W

2X4

40W

30W

25W

20W

Manufacturing Abilities

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

2x2 40 Watt Volumetric LED Troffer 3500K 5000 Lumens 120-277Vac

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

2x2 40 Watt Volumetric LED Troffer 3500K 5000 Lumens 120-277Vac
