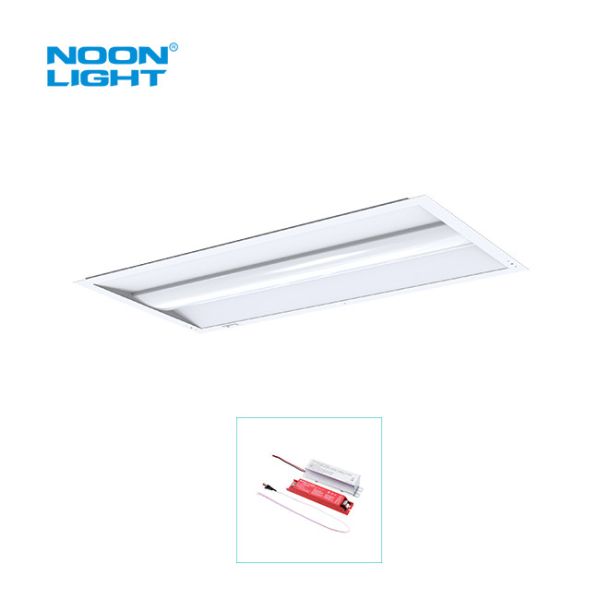

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup

Name: Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-TR-1X4FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : DLC5.1 Premium LED Troffer

Power : 27W-24W-20W-16W Power Adjustable

CCT : 30K/35K/40K/50K Tunable

Light Source : 2835 SMD, CRI>80

Installation : Surface Mounted, Suspension Mounted

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Stairwell and Passageway Luminaires

Contact Now

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup

CCT and Power Tuanable LED Troffer Light Features

Minimize stock, 1 SKU can cover max. of 16 models.
An auxiliary to connect low voltage sensor/BLE or other IOT network.
Wattage Tunable Troffer Lights 2 Depth Design: Super Thin & Standard
2x4ft LED Troffer Retrofit 5-100% 0-10V dimmable, flicker free, Dim to off.
Built-in PIR Sensor and Motion Sensor Options.

Specification

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-14-27-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	27W	Frosted	Ra>80, 30K 35K 40K 50K	3375LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-24-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	24W	Frosted	Ra>80, 30K 35K 40K 50K	3000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-20-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	20W	Frosted	Ra>80, 30K 35K 40K 50K	2500LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-16-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	16W	Frosted	Ra>80, 30K 35K 40K 50K	2000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent

CCT and Power Tuanable LED Troffer Light Accessories

4W or 8W UL Listed Emergency Backup

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup

Listed for field Instllation-UL924 & CSA C22.2 NO. 141
Input: 120-277VAC/347VAC 50/60Hz
Output: 25-50VDC, 8W or 15w
Illumination Time: 90min
Battery Type:Li-ion/Ni-MH
Battery Recharge Time: 24Hrs
Surge Protection: 3KV
Protection:
Input over-current Protection (Fuse)
Output over-voltage Protection
Output Low Voltage Protection
Output Short Circuit Protection
Working Temp.: 10℃ to 50℃

Advantages

ADJUSTABLE CCT TROFFER LIGHTS

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
1X4	27W	24W	20W	16W
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

CCT Tunable Slide Switch Position
Position/Group	CCT
Low	3000K(Optional)
Middle 1	3500K
Middle 2	4000K
High	5000K

Manufacturing Abilities

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup

CCT and Power Tuanable LED Troffer Light Certificate

Power and CCT Tuanble 1x4 Troffer Lights With Emergency Backup

Applications

Schools, offices, conference room, hospitality etc.
