Product Description:

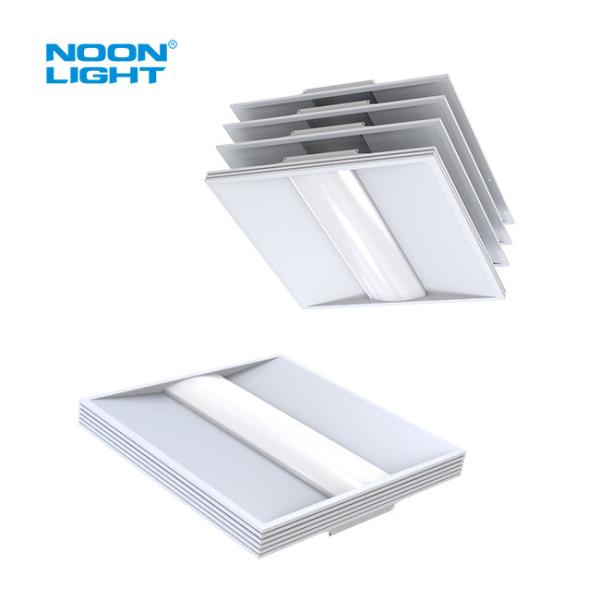

Noonlight Layered Design LED Troffer
The Noonlight Layered Design LED Troffer offers advanced technology for customizable lighting solutions. With its 4CCT and 4wattage Selectable features, clients can select the specific color temperature and lumen output that best meets their lighting needs.
The troffer's frosted lens provides uniform and high-quality lighting, with excellent color rendering and minimal glare. Its sleek and modern architectural design makes it a versatile addition to a variety of spaces, including offices, educational facilities, healthcare facilities, hotels, and retail interiors.
Features:
The DLC5.1 premium LED Troffer offers up to 135LM/W efficiency, making it an energy-efficient and cost-effective lighting solution.
Equipped with a CLASS P Programmable LED Driver, this troffer allows for 4-step power adjustment and offers a high color rendering index (CRI) of over 80. It also has the ability to adjust the color temperature (CCT) ranging from 3000K to 5000K, providing customizable lighting options.
With a maximum coverage of 16 models, this troffer minimizes stock for easy inventory management. It also includes an auxiliary connection for low voltage sensors, Bluetooth Low Energy (BLE) technology, and other Internet of Things (IOT) networks.
The troffer features a 2-depth design, available in a super thin or standard size, making it suitable for various installation spaces.
It offers 5-100% dimming with 0-10V, flicker-free technology, and can dim to off for complete control over lighting levels. Optional built-in PIR and motion sensors provide additional energy efficiency and can be paired with an optional emergency driver for added safety and functionality.
This CCT tunable LED troffer has an L70 lifespan of over 50,000 hours and comes with a 5-year warranty, ensuring long-lasting and reliable performance.
Technical Parameters:
| Product Name |
LED Troffer Lights |
| Application |
Schools, Offices, Conference Room, Hospitality Etc. |
| Input Voltage |
100-277VAC Or 100-347VAC Or 347-480VAC |
| Luminous Flux |
2000-2500-3000-3375LM |
| Color Temperature |
3000K / 3500K 4000K / 5000K |
| Power |
16W / 20W / 24W / 27W |
| Material |
White Powder Painted Steel |
| CRI |
>80 |
| Lifespan |
50,000hrs |
| Warranty |
5 Years |
Accessories
BI-LEVEL 12V PIR SENSOR/PIR SENSOR WITH DAYLIGHT HARVESTING
Specification
- Input: 12-24VDC, >8ma
- 0-10V DC output signal
- Memeory function with one bottun commissiong.
- IR Remote controller commission.
- Detecton Range: Max. 6m in diameter.
- Mounting Height: 3-4m.
- Optional Daylight Harvesting
Sensitivity: 100%/25%, 50%, 75%, 100%Default Setting/Setting
- Daylight Sensor: Disable/Ambient Learn, 2lux, 10lux, 25lux, 50lux, 100lux, 300lux, Disable
- Hold Time: 5min/30s, 90s, 5 min, 10min, 30min
- Twilgith Time: never turn off/10s, 5min, 10min, 30min, 1h, never tun off
- Twilight Level: 30%/off, 10%, 30%, 50%
Applications:
Schools, offices, conference room, hospitality etc.
