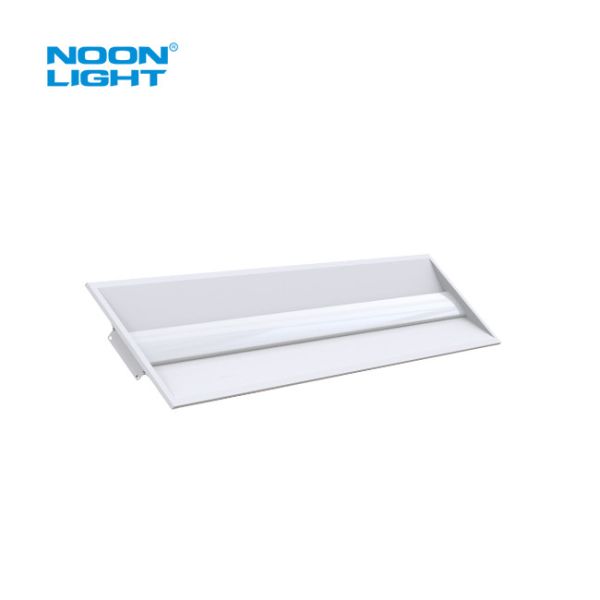

1FTX4FT LED Troffer Lights Gloss White Painting 2000lm-3500lm

Name: 1FTX4FT LED Troffer Lights Gloss White Painting 2000lm3500lm
Brand: Noonlight
Price: 1 USD

Wholesale 1FTX4FT LED Troffer Lights Gloss White Painting 2000lm-3500lm from china suppliers

Brand Name : Noonlight

Model Number : N-TR-1X4FT

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 200

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 4pcs/CTN,

Product Name : DLC5.1 Premium LED Troffer

Input Voltage(V) : AC 120-277VAC or AC 120-347VAC

Power : 27W-24W-20W-16W Power Adjustable

CCT : 30K/35K/40K/50K Tunable

Luminous Efficacy : 130 lm/W

Housing : 24 Gauge Steel, Gloss White Painting

Light Source : 2835 SMD, CRI>80

Installation : Surface Mounted, Suspension Mounted

Warranty : 5 years

Certificate : ETL/DLC 5.1 Preminum

DLC Category : Stairwell and Passageway Luminaires

Contact Now

1FTX4FT LED Troffer Lights Gloss White Painting 2000lm-3500lm

1FTX4FT LED Troffer Lights Gloss White Painting 2000lm-3500lm

Noonlight LED Troffers are the super slim led fixtures for fluorescent troffers in new or remodel construction. CCT and wattage adjustable technology enables customers to choose the color temperature and lumen output that is best suited for their lighting application.
Frosted lens delivers even light with excellent color rendering and low glare, while its architectural design features make it the perfect complement to office, education, health care, hospitality and retail interiors.

Features

CCT and Power Tuanable LED Troffer Light UP TO 135LM/W
CLASS P Programmable LED Driver, 4 Step Power Adujustable,
CRI>80, CCT Tunable, 3000K, 3500K, 4000K and 5000K
Minimize stock, 1 SKU can cover max. of 16 models.
An auxiliary to connect low voltage sensor/BLE or other IOT network.
2 Depth Design: Super Thin & Standard
5-100% 0-10V dimmable, flicker free, Dim to off.
DLC5.1 Premium LED Troffer Built-in PIR Sensor and Motion Sensor Options.
Built-in Emergency Driver Option.
L70>50,000hrs, 5 year warranty.

Specification

Model No	DLC	Input Voltage	Wattage	Lens	CRI/CCT	Rated Lumen @ 30K	Rated Efficancy @ 30K	Viewing Angle	Rated Lifetime	Replacing
N-TR-14-27-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	27W	Frosted	Ra>80, 30K 35K 40K 50K	3375LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-24-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	24W	Frosted	Ra>80, 30K 35K 40K 50K	3000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-20-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	20W	Frosted	Ra>80, 30K 35K 40K 50K	2500LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent
N-TR-14-16-XX-WC1	P	120-347VAC/ 120 - 277VAC 0- 10V Isolated Dimmable	16W	Frosted	Ra>80, 30K 35K 40K 50K	2000LM	125LM/W	120°	L70> 50000hrs	60W - 200W Incandescent

CCT and Power Tuanable LED Troffer Light Accessories

1FTX4FT LED Troffer Lights Gloss White Painting 2000lm-3500lm

4W or 8W UL Listed Emergency Backup

Listed for field Instllation-UL924 & CSA C22.2 NO. 141
Input: 120-277VAC/347VAC 50/60Hz
Output: 25-50VDC, 8W or 15w
Illumination Time: 90min
Battery Type:Li-ion/Ni-MH
Battery Recharge Time: 24Hrs
Surge Protection: 3KV
Protection:
Input over-current Protection (Fuse)
Output over-voltage Protection
Output Low Voltage Protection
Output Short Circuit Protection
Working Temp.: 10℃ to 50℃

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Power Adjustable Slide Switch Position
Size/Positon	0	1	2	3
1X4	27W	24W	20W	16W
2X2	27W	24W	20W	16W
2X4	40W	30W	25W	20W

CCT Tunable Slide Switch Position
Position/Group	CCT
Low	3000K(Optional)
Middle 1	3500K
Middle 2	4000K
High	5000K

Manufacturing Abilities

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

1FTX4FT LED Troffer Lights Gloss White Painting 2000lm-3500lm

Certificate

1FTX4FT LED Troffer Lights Gloss White Painting 2000lm-3500lm

CCT and Power Tuanable LED Troffer Light Applications

Schools, offices, conference room, hospitality etc.
