Product Description:

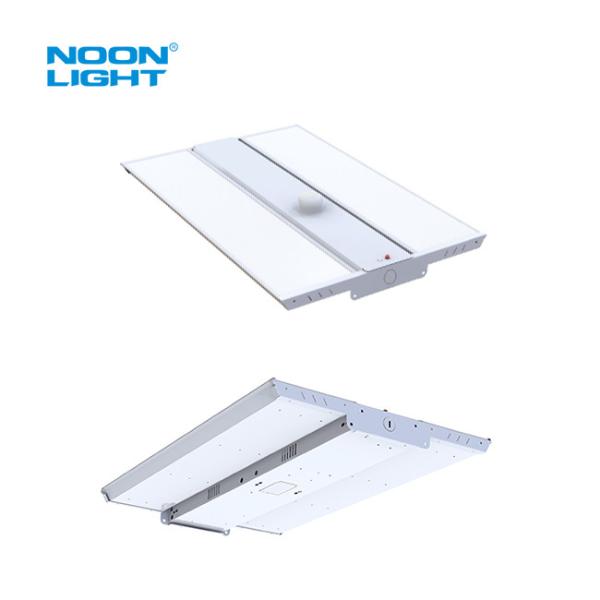

The Noonlight Linear Highbay Led fixture is a versatile lighting solution that can be used for a variety of different applications and mounting heights. Its flexible design makes it an ideal choice for those looking to upgrade from older, conventional fluorescent and metal halide high bay systems.
One of the standout features of the Noonlight Linear Highbay Led fixture is its multiple lumen packages. This allows customers to choose the level of brightness that's right for their unique needs. Whether you're in need of a high-output lighting solution or something more subdued, this fixture has you covered.
Another major advantage of upgrading to a Noonlight Linear Highbay Led fixture is the cost savings that come with it. Not only are LED lights much more efficient than their older counterparts, but they also last much longer. This means you'll be saving money on your energy bill and maintenance costs in the long run.
Features:
The driver is designed to support power of up to 320W and is Class 2 certificated with a voltage range of 100-347VAC. This driver can efficiently power up a variety of devices with ease and safety.
The 4-step power adjustable and 3 CCT tunable feature of this driver helps minimize stock and a single SKU can cover up to 12 models, making it a versatile and cost-effective option for users.
This driver comes with plugable PIR sensor and motion sensor, which are Zhaga PIR & Motion Sensor certified and enhances the security features of the device.
With the front access door, the driver can be easily maintained, saving time and effort. The built-in emergency driver option also adds safety to the device, making it a reliable choice.
Technical Parameters:
| Product Name |
LED Linear High Bay Lights |
| Light Source |
SMD2835 |
| Color Temperature |
4000K / 5000K |
| Power |
130W - 140W - 155W - 170W |
| Input Voltage |
100-277VAC Or 100-347VAC Or 347-480VAC |
| Luminous Flux |
21450LM - 23100LM - 25575LM - 28050LM |
| Beam Angle |
120° |
| Working Temperature |
-20~+45℃ |
| Lifespan |
50,000hrs |
| Warranty |
5 Years |
Accessories
15W or 30W UL Listed Emergency Backup
- Listed for field Instllation-UL924 & CSA C22.2 NO. 141
- Input: 120-277VAC/347VAC 50/60Hz
- Output: 25-50VDC, 15 or 30W
- Illumination Time: 90min
- Battery Type:Li-ion
- Battery Recharge Time: 24Hrs
- Surge Protection: 3KV
Advantages
Power Tunable Linear High Bay HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
| Power Adjustable Slide Switch Position |
| Size/Positon |
0 |
1 |
2 |
3 |
| 1X2 |
60W |
70W |
75W |
85W |
| 1X2 |
95 |
105 |
115 |
125 |
| 1X2 |
130 |
140 |
155 |
170 |
Applications:
Warehouse Factory And Workshop Highway Toll Station And Gas Station Exhibition Hall Gymnasium And Supermarkets, Etc.
