1x2ft Dimmble LED Linear High Bay Ideal for Factory Lighting

Product Categories
Zhongshan NoonLighting Co., Ltd.
Contact Now

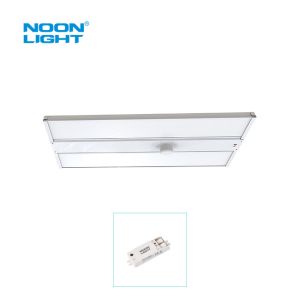

1x2ft Dimmble LED Linear High Bay Ideal for Factory Lighting

Brand Name : Noonlight

Model Number : N-HBL

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 300

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm

Product Name : DLC5.1 Premium 165LM/W LED Linear high bay

Power : 30W-35W-40W-50W Adjustable

CCT : 30K/35K/40K/50K CCT Tunable

Luminous Efficacy : 165 lm/W

CRI : Ra>80

Warranty(Year) : 5 years warrantly

Contact Now

1x2ft Dimmble LED Linear High Bay Ideal for Factory Lighting

​

  • Available in 120-347VAC or 347-480VAC Class P Programmable LED Driver, 0-10V Dimming, Dim to Off.​​
  • Ideal Applications: Warehouse lighting, distribution center lighting, gym lighting, automotive service bay lighting, factory lighting

1x2FT LED Linear High Bay Features​

  • 1 Driver only for All of Power Up to 320W with Class 2 Certificated(100-347VAC only)
  • CCT and Power linear high bay 4 Step Power Adujustable, and 3 CCT Tunable(Optional), minimize stock, 1 SKU can cover max. of 12 models.
  • Front Access Door for Easy Maintenance
  • Various Lens Option: Clear, Frosted, Angled lens
  • Plugable PIR Sensor and Motion Sensor, Zhaga PIR & Motion Sensor
  • Linear High Bay Lights With Emergency Back Up Built-in Emergency Driver Option

LED Linear High Bay Certificate

1x2ft Dimmble LED Linear High Bay Ideal for Factory Lighting

Specification

Model No DLC Input Voltage Wattage Lens CCT Rated Lumen @ 50K

Rated

Efficancy

@ 50K

 Viewing Angle Replacing
N-HBL-12-30W

Pending

100-277VAC

or

100-347VAC



 30

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K



 4950 165 120°

100W MH,

4-lamp T8 NBF
N-HBL-12-35W 35 5775
N-HBL-12-40W 40 6600
N-HBL-12-50W 50 8250
N-HBL-12-50W

Pending

100-277VAC

or

100-347VAC




 50

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K




 8250 165 120°

175W MH,

4-lamp T8 HBF,

2-lamp T5HO
N-HBL-12-55W 55 9075
N-HBL-12-60W 60 9900

200W MH,

6-lamp T8 NBF
N-HBL-12-65W 65 10725
N-HBL-12-60W

Pending

100-277VAC

or

100-347VAC




 60

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K




 9900 165 120°

250W MH,

6-lamp T8 HBF, 4-lamp T5HO
N-HBL-12-70W 70 11550
N-HBL-12-75W 75 12375

400W MH,

6-lamp T5HO
N-HBL-12-85W 85 14025
N-HBL-12-95W

Pending

100-277VAC

or

100-347VAC

or

347-480VAC




 95

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K




 15675 165 120°

400W MH,

6-lamp T5HO
N-HBL-12-105W 105 17325
N-HBL-12-115W 115 18975

575W MH,

10-lamp T8 HBF
N-HBL-12-125W 125 20625

750W MH,

8-lamp T5HO
N-HBL-12-130W Pending

100-277VAC

or

100-347VAC

or

347-480VAC


 130

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 21450 165 120°

875W MH,

10-lamp T5HO
N-HBL-12-140W 140 23100
N-HBL-12-155W 155 25575

1000WMH,

12-lamp T5HO
N-HBL-12-170W 170 28050

Accessories

1x2ft Dimmble LED Linear High Bay Ideal for Factory Lighting 1x2ft Dimmble LED Linear High Bay Ideal for Factory Lighting 1x2ft Dimmble LED Linear High Bay Ideal for Factory Lighting

Zhaga Highbay With Motion Sensor

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

  • Dual PD Technology: can identify daylight and artificial light.
  • Input Voltage: 12VDC Output: 0-10V, 25mA sinking current
  • Mounting Height: Max. 40ft. Detection Range: 30ft @ 40ft height in diameter
  • IR remote commissioning: easy setting via remote controller
  • Photocell available

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
  • Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
  • Twilight Time: never turn off/1min, 30min, 1h, never tun off
  • Twilight Level: 20%/off, 10%, 20%, 50%

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Power Adjustable Slide Switch Position
Size/Positon 0 1 2 3
1X2 30W 35W 40W 50W
1X2 50W 55W 60W 65W
1X2 60W 70W 75W 85W
1X2 95 105 115 125
1X2 130 140 155 170

CCT Tunable Slide Switch Position
Position/Group CCT
Low 4000K
Middle 4500K
High 5000K

Lighting Service

NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:

  • OEM/ODM Serivce
  • Photometric/IES file
  • PCB Design/Driver Design
  • Heat Management/Optical Design
  • Industry Design
  • Market Support
  • 3D Printing
  • Multiple Listing/Private Label.

1x2ft Dimmble LED Linear High Bay Ideal for Factory Lighting

1x2FT LED Linear High Bay Applications

Schools, offices, conference room, hospitality etc.

1x2ft Dimmble LED Linear High Bay Ideal for Factory Lighting
