Product Description:

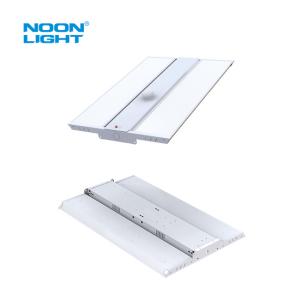

The Noonlight Linear Highbay LED fixture is an excellent solution for a wide range of applications and mounting heights. Whether you need lighting for a warehouse, gymnasium, or other large indoor space, this product has you covered. The multiple lumen packages available make it an ideal choice for replacing conventional fluorescent and metal halide high bay systems. With its energy-efficient LED technology, you'll be able to reduce your energy costs and enjoy long-lasting, durable performance.
This lighting fixture is available in two sizes: 1x2' wide and 1x4'. It features a 0-10V dimming driver as standard, allowing you to adjust the brightness as needed (10% to 100%). It also has an operating temperature range of -40°C to +40°C (-40°F to +104°F), with a maximum ambient temperature of 30°C (86°F). This ensures that the fixture will perform reliably in a range of environmental conditions.
Specification
| Model No |
DLC |
Input Voltage |
Wattage |
Lens |
CCT |
Rated Lumen @ 50K |
Rated
Efficancy
@ 50K
|
Viewing Angle |
Replacing |
|
N-HBL-12-30W
|
Pending
|
100-277VAC
or
100-347VAC
|
30 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
4950 |
165 |
120° |
100W MH,
4-lamp T8 NBF
|
|
N-HBL-12-35W
|
35 |
5775 |
|
N-HBL-12-40W
|
40 |
6600 |
|
N-HBL-12-50W
|
50 |
8250 |
|
N-HBL-12-50W
|
Pending |
100-277VAC
or
100-347VAC
|
50 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
8250 |
165 |
120° |
175W MH,
4-lamp T8 HBF,
2-lamp T5HO
|
|
N-HBL-12-55W
|
55 |
9075 |
|
N-HBL-12-60W
|
60 |
9900 |
200W MH,
6-lamp T8 NBF
|
|
N-HBL-12-65W
|
65 |
10725 |
|
N-HBL-12-60W
|
Pending |
100-277VAC
or
100-347VAC
|
60 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
9900 |
165 |
120° |
250W MH,
6-lamp T8 HBF, 4-lamp T5HO
|
|
N-HBL-12-70W
|
70 |
11550 |
|
N-HBL-12-75W
|
75 |
12375 |
400W MH,
6-lamp T5HO
|
|
N-HBL-12-85W
|
85 |
14025 |
|
N-HBL-12-95W
|
Pending |
100-277VAC
or
100-347VAC
or
347-480VAC
|
95 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
15675 |
165 |
120° |
|
N-HBL-12-105W
|
105 |
17325 |
|
N-HBL-12-115W
|
115 |
18975 |
575W MH,
10-lamp T8 HBF
|
|
N-HBL-12-125W
|
125 |
20625 |
750W MH,
8-lamp T5HO
|
|
N-HBL-12-130W
|
Pending |
100-277VAC
or
100-347VAC
or
347-480VAC
|
130 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
21450 |
165 |
120° |
875W MH,
10-lamp T5HO
|
|
N-HBL-12-140W
|
140 |
23100 |
|
N-HBL-12-155W
|
155 |
25575 |
1000WMH,
12-lamp T5HO
|
|
N-HBL-12-170W
|
170 |
28050 |
Accessories
15W or 30W UL Listed Emergency Backup
- Listed for field Instllation-UL924 & CSA C22.2 NO. 141
- Input: 120-277VAC/347VAC 50/60Hz
- Output: 25-50VDC, 15 or 30W
- Illumination Time: 90min
- Battery Type:Li-ion
- Battery Recharge Time: 24Hrs
- Surge Protection: 3KV
- Protection:
- Input over-current Protection (Fuse)
- Output over-voltage Protection
- Output Low Voltage Protection
- Output Short Circuit Protection
- Working Temp.: 10℃ to 50℃
Applications:
Warehouse Factory And Workshop Highway Toll Station And Gas Station Exhibition Hall Gymnasium And Supermarkets, Etc.
