Product Description:

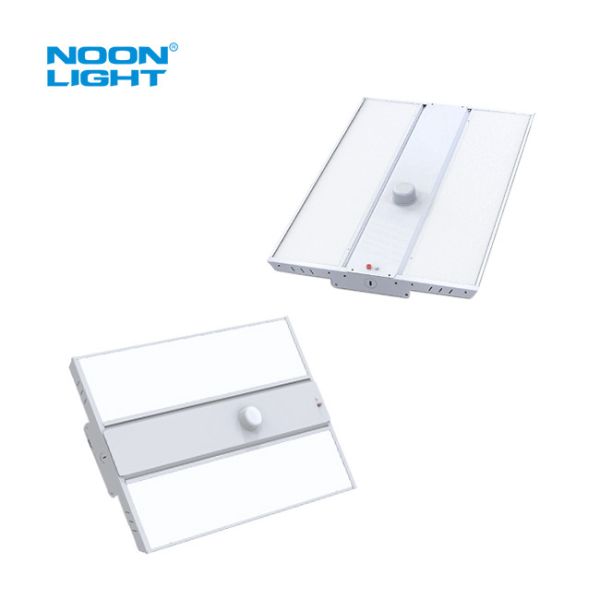

The Noonlight Linear Highbay Led fixture is an exceptional choice for different applications and mounting heights. With its versatile lumen packages, this fixture is perfect for replacing traditional fluorescent and metal halide high bay systems, making it a one-for-one replacement.
This high bay LED light is available in 1x2’ wide and 1x4’ sizes, making it ideal for various spaces and mounting requirements. It comes with a 0-10V Dimming Driver Standard, which provides a 10% to 100% dimming range. Plus, it can operate at temperatures of -40°C to +40°C (-40°F to +104°F) and maintain ambient temperatures up to 30°C (86°F).
Features:
ETL Linear High Bay - Cutting Edge Lighting Solution
In this digital age, technological advancements have graced us with newer and better versions of products that were once considered satisfactory. One such cutting-edge technology is ETL Linear High Bay 120-347VAC or 347-480VAC Class P Programmable LED Driver. This driver is designed to be versatile, offering 0-10V dimming, Dim to Off feature, and is compatible with AC power from 120-347VAC or 347-480VAC.
In addition to its power-packed features, this driver boasts of the One and Only Cutting Edge Class 2 Driver Technology, offering buyers an unparalleled user experience. If you are looking for a state-of-the-art lighting solution that caters to various needs, look no further than ETL Linear High Bay.
The driver also offers a range of lens options including clear, frosted, and angled lenses, ensuring that your lighting preferences are met. This driver is additionally supported by PIR Sensor, offering improved motion detection capabilities of up to 165lm/W, and a range from 5000lm-53000lm.
To add icing to the cake, the driver comes with plugable PIR Sensor and Motion Sensors, Zhaga PIR and Motion Sensor, adding an extra layer of convenience and accessibility.
With ETL Linear High Bay, you have a range of advanced features that guarantee the best possible lighting experience tailored to your needs.
Technical Parameters:
| LED Linear High Bay Lights Technical Parameters |
| Product Name |
LED Linear High Bay Lights |
| Light Source |
SMD2835 |
| Lifespan |
50,000hrs |
| Working Temperature |
-20~+45℃ |
| Beam Angle |
120° |
| Luminous Flux |
8250LM - 9075LM - 9900LM - 10725LM |
| Material |
White Powder Painted Steel |
| Input Voltage |
100-277VAC
100-347VAC
347-480VAC |
| CRI |
Ra>80 |
| Color Temperature |
4000K / 5000K |
Accessories
15W or 30W UL Listed Emergency Backup
- Listed for field Instllation-UL924 & CSA C22.2 NO. 141
- Input: 120-277VAC/347VAC 50/60Hz
- Output: 25-50VDC, 15 or 30W
- Illumination Time: 90min
- Battery Type:Li-ion
- Battery Recharge Time: 24Hrs
- Surge Protection: 3KV
- Protection:
- Input over-current Protection (Fuse)
- Output over-voltage Protection
- Output Low Voltage Protection
- Output Short Circuit Protection
- Working Temp.: 10℃ to 50℃
Applications:
Warehouse Factory And Workshop Highway Toll Station And Gas Station Exhibition Hall Gymnasium And Supermarkets, Etc.
