Product Description:

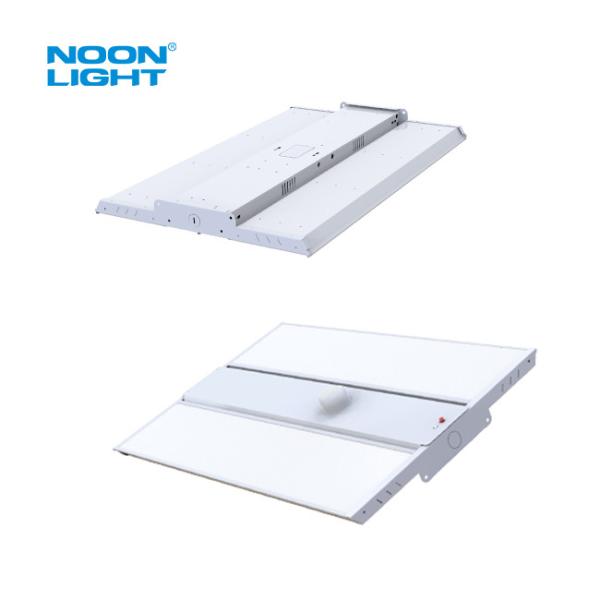

Noonlight Linear Highbay Led Fixture
The Noonlight Linear Highbay Led Fixture is the ultimate solution for a wide range of applications and mounting heights. With its various lumen packages, it is the ideal replacement for traditional fluorescent and metal halide high bay systems.
Available in both 1x2' and 1x4' sizes, this product comes equipped with a 0-10V Dimming Driver (10% - 100%) standard, and has an operating temperature range of -40°C to +40°C (-40°F to +104°F), with a maximum temperature limit of 30°C (86°F).
Ideal Applications:
- Warehouse lighting
- Distribution center lighting
- Gym lighting
- Automotive service bay lighting
- Factory lighting
Features:
120-347VAC or 347-480VAC Class P Programmable LED Driver
This LED driver is suitable for use with voltage ranges of 120-347V AC or 347-480V AC. It is programmable and Class P certified, making it a versatile and reliable choice for LED lighting applications.
It features 0-10V dimming capabilities, allowing for customizable lighting adjustments. Additionally, it has the option for dimming to off, providing even greater control over the lighting in your environment.
CCT Tunable LED Linear Highbay
This highbay offers CCT tunable capabilities, allowing for 4-step power adjustment and the option for 3 CCT tunable settings. This helps to minimize the need for multiple stock items, as one SKU can cover up to 12 different models.
The highbay also comes with a plugable PIR and motion sensor, with the option for varying Zhaga PIR and motion sensors to suit your specific needs.
Linear High Bay Built-in Emergency Driver Option
In addition to its regular features, this linear high bay also has a built-in emergency driver option. This provides an added layer of safety and peace of mind in case of unexpected power outages or emergencies.
What's more, this high bay only requires one driver for all power ranges up to 320W, and is Class 2 certified for use with 100-347V AC voltage ranges. This streamlines the installation process and ensures compliance with safety regulations.
Easy Maintenance and Versatility
With a front access door, this high bay is designed for easy maintenance without the need for specialized tools or equipment. It also offers 4-step power adjustment and the option for 3 CCT tunable settings, minimizing the need for multiple stock items. This makes it a versatile and efficient choice for a wide range of lighting needs.
Technical Parameters:
| Product Name | LED Linear High Bay Lights |
|---|
| Material | White Powder Painted Steel |
|---|
| Light Source | SMD2835 |
|---|
| Color Temperature | 4000K / 5000K |
|---|
| Power | 50W-55W-60W-65W |
|---|
| Beam Angle | 120° |
|---|
| CRI | Ra>80 |
|---|
| Lifespan | 50,000hrs |
|---|
| Working Temperature | -20~+45℃ |
|---|
| Luminous Flux | 8250LM-9075LM-9900LM-10725LM |
|---|
| Special Features | Wattage adjustable Linear highbay |
|---|
Applications:
Schools, offices, conference room, hospitality etc.
Advantages
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
| CCT Tunable Slide Switch Position |
| Position/Group | CCT |
| Low | 4000K |
| Middle | 4500K |
| High | 5000K |
