Product Description:

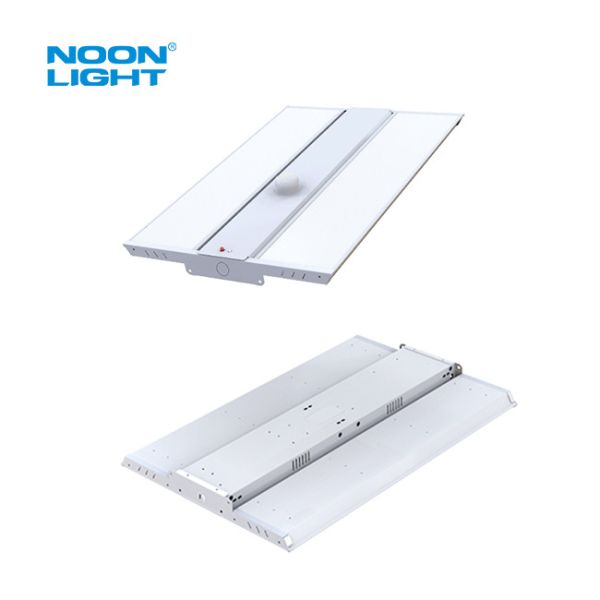

Noonlight Linear Highbay Led fixture is the perfect solution for a wide variety of applications and mounting heights. Its versatility, with multiple lumen packages to choose from, makes it an ideal choice for replacing conventional fluorescent and metal halide high bay systems.
Available in both 1x2’ wide and 1x4’ sizes, this product comes equipped with a 0-10V Dimming Driver and has a standard operating temperature range of -40°C to +40°C (-40°F to +104°F). It can be dimmed from 10% to 100% and maintains a comfortable temperature of 30°C (86°F).
Features:
DLC5.1 Premium LED Linear high bay 1 Driver only for All of Power Up to 320W with Class 2 Certificated(100-347VAC only)
LED Lienar high bay dim to off 4 Step Power Adujustable, and 3 CCT Tunable(Optional), minimize stock, 1 SKU can cover max. of 12 models.
Front Access Door for Easy Maintenance
Various Lens Option: Clear, Frosted, Angled lens
ETL Linear High Bay Plugable PIR Sensor and Motion Sensor, Zhaga PIR & Motion Sensor
Technical Parameters:
| Product Name |
LED Linear High Bay Lights |
| Color Temperature |
4000K / 5000K |
| Working Temperature |
-20~+45℃ |
| Lifespan |
50,000hrs |
| Material |
White Powder Painted Steel |
| Input Voltage |
100-277VAC Or 100-347VAC Or 347-480VAC |
| Warranty |
5 Years |
| CRI |
Ra>80 |
| Power |
50W - 55W - 60W - 65W |
| Light Source |
SMD2835 |
| Key Features |
Wattage adjustable Linear highbay, CCT Tunable Linear High Bay, LED Linear Highbay Light |
Advantages
CCT Tunable LED Linear Highbay
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
|
Power Adjustable Slide Switch Position
|
| Size/Positon |
0 |
1 |
2 |
3 |
| 1X2 |
30W |
35W |
40W |
50W |
| 1X2 |
50W |
55W |
60W |
65W |
| 1X2 |
60W |
70W |
75W |
85W |
| 1X2 |
95 |
105 |
115 |
125 |
| 1X2 |
130 |
140 |
155 |
170 |
Applications:
Customization:
Noonlight LED Linear High Bay Lights - Customized Service
Brand Name: Noonlight
Model Number: N-HBL-2FT
Place of Origin: China
Certification: DLC, ISO9001, Rosh, ETL
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 30 day(s)
Payment Terms: T/T, AliPay, PayPal
Supply Ability: 3000 pcs/day
CRI: Ra>80
Power Options: 50W - 55W - 60W - 65W
Input Voltage Options: 100-277VAC Or 100-347VAC Or 347-480VAC
Light Source: SMD2835
