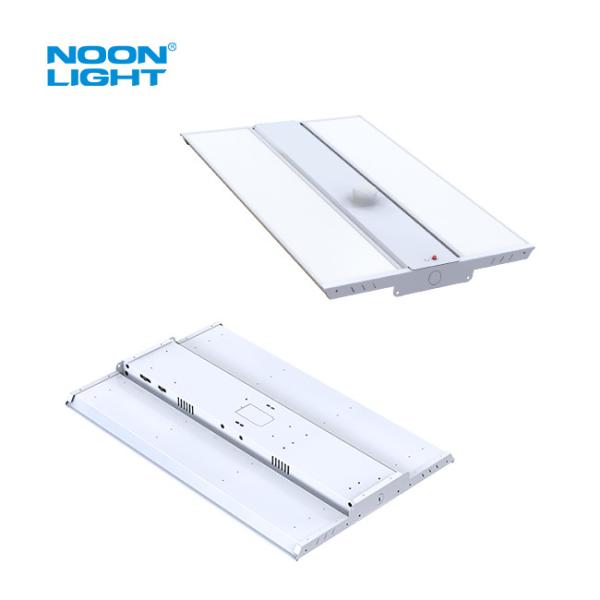

Noonlight Linear Highbay Led fixture is the perfect solution for a wide variety of applications and mounting heights. Its multiple lumen packages make it an ideal choice as a one for one replacement of conventional fluorescent and metal halide high bay systems.
Features:
This product is available in two voltage options: 120-347VAC or 347-480VAC. It is a Class P programmable LED driver that has a dimming range from 0-10V, allowing for dimming down to off.
This product comes in two sizes: 1x2' wide and 1x4'. The standard driver allows for 0-10V dimming with a range of 10% - 100%. It has an operating temperature of -40°C to +40°C (-40°F to +104°F), with a maximum operating temperature of 30°C (86°F).
Ideal Applications
- Warehouse lighting
- Distribution center lighting
- Gym lighting
- Automotive service bay lighting
- Factory lighting
Certificate
Technical Parameters:
| Product Name |
LED Linear High Bay Lights |
| CRI |
Ra>80 |
| Beam Angle |
120° |
| Input Voltage |
100-277VAC
100-347VAC
347-480VAC |
| Color Temperature |
4000K
5000K |
| Light Source |
SMD2835 |
| Material |
White Powder Painted Steel |
| Lifespan |
50,000hrs |
| Luminous Flux |
4950LM
5775LM
6600LM
8250LM |
| Working Temperature |
-20~+45℃ |
| 165lm/W Linear High Bay Light |
LED Linear Highbay Light |
| 165lm/W Linear High Bay Light |
High Lumen LED Light |
Applications:
Schools, offices, conference room, hospitality etc.
Accessories
Linear high bay with emergency back up 15W or 30W UL Listed Emergency Backup
- Protection:
- Input over-current Protection (Fuse)
- Output over-voltage Protection
- Output Low Voltage Protection
- Output Short Circuit Protection
- Working Temp.: 10℃ to 50℃
