130W-140W-155W-170W CCT Tunable Linear High Bay With 21450LM-23100LM-25575LM-28050LM
Product Description:

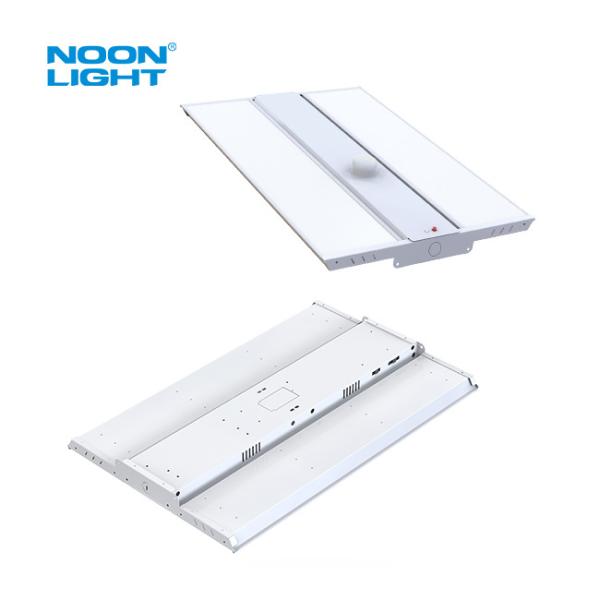

Noonlight Linear Highbay Led fixture is the perfect solution for a wide variety of applications and mounting heights. It is designed with multiple lumen packages making it an ideal candidate for conventional fluorescent and metal halide high bay system replacement.
It comes with three types of lens options: Clear Lens, Frosted Lens and Angled Lens. It is crafted in two sizes - 1x2’ wide and 1x4’ sizes and fits comfortably for the operating temperature of -40°C to +40°C (-40°F to +104°F). Its Class P Programmable LED Driver and 0-10V Dimming feature enable the fixture to Dim to Off.
This outstanding LED Linear Highbay dim to off feature is best suited for Warehouse lighting, Distribution Centers, Gyms, Automotive Service Bays, and Factories.
Features:
The ETL Linear High Bay is a 120-347VAC or 347-480VAC Class P programmable LED Driver with 0-10V Dimming. This technology is cutting edge and allows you to use just one driver for all powers up to 320W. Also, the driver is Class 2 certified for 100-347VAC. Furthermore, there is a 4 step power adjustable and a 3 color temperature tunable, which minimizes stock and allows you to cover up to 12 models with one kid of stock.
The product comes with various lens option, such as clear, frosted, and angled lens. The LED Linear High Bay with PIR sensor can reach up to 165LM/W while ranging from 5000lm-53000lm. It is also pluggable with a PIR sensor and motion sensor, and is compatible with Zhaga PIR & Motion Sensor. The 120-277Vac Linear Highbay reaches up to 165LM/W while ranging from 5000lm-53000lm.
Technical Parameters:
| Material |
Luminous Flux |
| White Powder Painted Steel |
21450LM - 23100LM - 25575LM - 28050LM |
| Beam Angle |
Input Voltage |
| 120° |
100-277VAC Or 100-347VAC Or 347-480VAC |
| Warranty |
Working Temperature |
| 5 Years |
-20~+45℃ |
| CRI |
Power |
| Ra>80 |
130W - 140W - 155W - 170W |
| Light Source |
Color Temperature |
| SMD2835 |
4000K / 5000K |
Advantages
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
|
Power Adjustable Slide Switch Position
|
| Size/Positon |
0 |
1 |
2 |
3 |
| 1X2 |
30W |
35W |
40W |
50W |
| 1X2 |
50W |
55W |
60W |
65W |
| 1X2 |
60W |
70W |
75W |
85W |
| 1X2 |
95 |
105 |
115 |
125 |
| 1X2 |
130 |
140 |
155 |
170 |
Lighting Service
NOONLIGHT Core Team have more than 15 years of experience in lighting industry. We are able to offer our valuable clients:
- OEM/ODM Serivce
- Photometric/IES file
- PCB Design/Driver Design
- Heat Management/Optical Design
- Industry Design
- Market Support
- 3D Printing
- Multiple Listing/Private Label.
Applications:
Schools, offices, conference room, hospitality etc.
