Product Description:

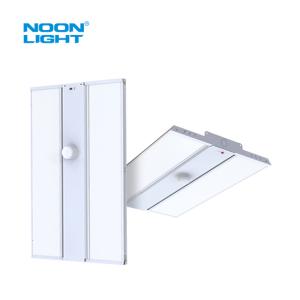

Noonlight Linear Highbay Led fixture offers a variety of lumen packages for a one-for-one replacement of conventional fluorescent and metal halide high bay systems.
It provides Clear Lens, Frosted Lens and Angled Lens options. It is powered by a 120-347VAC or 347-480VAC Class P Programmable LED Driver and 0-10V Dimming, Dim to Off features.
For installations in challenging environments, it offers an operating temperature of -40°C to +40°C (-40°F to +104°F), 30°C (86°F). This can be used in any application, making it a great choice for either 1x2’ wide or 1x4’ sizes.
Features:
Highlighting Effect
This light offers up to 165LM/W of highlights and bright illumination. It’s ideal for commercial or any kind of outdoor lighting.
Easy Installation
The junction box is located in the front panel, allowing for easier maintenance and installation. It has a pluggable PIR motion-sensor feature and a Zhaga PIR and motion-sensor.
One Driver Only For All Of Wattage
It offers only one driver for all wattage from 30-320W, decreasing costs and providing smooth dimming. Additionally, users can also select 4-step power tunable and 3CCT options.
Minimise Stock
This light is definitely an asset to any business. It requires a very minimal stock; one singular SKU is enough to cover up to 12 models.
Built-In Emergency Driver Option
For convenience, the built-in emergency driver option promises to reduce time and installation complexity.
Specification:
| Product Name |
1x2FT LED Linear Highbay |
| Input Voltage |
120-277VAC, 0-10V Dimmable, Dim to Off |
| Lumen Efficacy |
165LM/W |
| Dimension |
L24.6 x W16 x H1.8" |
| CCT |
4000/4500/5000K Tunable
or 4000K,5000K |
| Max Power |
48W |
65W |
85W |
125W |
| Lumen |
7950-6600-5775-4950LM |
10725-9900-9075-8250LM |
14025-11550-9900-7425LM |
20625-18975-17325-15675LM |
| Wattage |
48W-40W-35W-30W |
65W-60W-55W-50W |
85W-70W-60W-45W |
125W-115W-105W-95W |
| Installation |
Pendant Mounting & Surface Mounting |
| Certificates |
ETL Listed, DLC 5.1 Premium |
Applications:
Warehouse lighting, distribution center lighting, gym lighting, automotive service bay lighting, factory lighting
Customization:
Are you looking for a 165lm/W Linear High Bay Light? At Noonlight, we offer a variety of LED Linear High Bay Lights with Brand Name: Noonlight, Model Number: N-HBL-2FT, Certifications: DLC, ISO9001, Rosh, ETL, and Minimum Order Quantity: 100pcs. Our LED Linear High Bay Lights can be powered by 60W - 70W - 75W - 85W and have a lifespan of 50,000hrs. These lights are made of White Powder Painted Steel and have a CRI of Ra>80. We offer the most competitive prices as well as fast delivery time of 30 days and multiple payment terms, including T/T, AliPay, and PayPal. We also offer a wide range of 300W LED Linear highbays. Contact us today to learn more about our 165lm/W Linear High Bay Lights and 300W LED Linear highbays!
