Plugable Power Tunable 1x2ft 1x4ft Linear High Bay With Bi Level Motion Sensor

Product Categories
Zhongshan NoonLighting Co., Ltd.
Contact Now

Plugable Power Tunable 1x2ft 1x4ft Linear High Bay With Bi Level Motion Sensor

Brand Name : Noonlight

Model Number : N-HBL

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 28-30 Working days

Packaging Details : 1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm

Product Name : DLC5.1 Premium Linear high bay

Power : 260W-280W-300W-320W Adjustable

CCT : 30K/35K/40K/50K CCT Tunable

Luminous Efficacy : 165 lm/W

Installation : Surface Mounted, Wall Mounted

Warranty(Year) : 5 years warrantly

Contact Now

Power Tunable 1x2ft,1x4ft Plugable Linear High Bay With Bi-level Motion Sensor

Features​

  • One driver only for all of wattage from 30-320W, Less cost and smooth dimming.
  • 4 step power tunable and 3CCT selectable,
  • Minimize Stock,1SKU can cover max.12 models.
  • Universal input voltage 120-277Vac/347Vac,347-480Vac
  • Class P Programmable LED Driver, 0-10V Dimming, Dim to off.​

Power Tunable Linear High Bay Specification

Model No DLC Input Voltage Wattage Lens CCT Rated Lumen @ 50K

Rated

Efficancy

@ 50K

 Viewing Angle Replacing

N-HBL-12-95W

 Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 95

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 15675 165 120°

400W MH,

6-lamp T5HO

N-HBL-12-105W

 105 17325

N-HBL-12-115W

 115 18975

575W MH,

10-lamp T8 HBF

N-HBL-12-125W

 125 20625

750W MH,

8-lamp T5HO

N-HBL-12-130W

 Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 130

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 21450 165 120°

875W MH,

10-lamp T5HO

N-HBL-12-140W

 140 23100

N-HBL-12-155W

 155 25575

1000WMH,

12-lamp T5HO

N-HBL-12-170W

 170 28050

N-HBL-14-150W

 Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 150

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 24750 165 120°

875W MH,

10-lamp T5HO

N-HBL-14-170W

 170 28050 165 120°

N-HBL-14-190W

 190 31350 165 120°

1000WMH,

12-lamp T5HO

N-HBL-14-210W

 210 34650 165 120°

N-HBL-14-260W

 Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 260

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 42900 165 120°

875W MH,

10-lamp T5HO

N-HBL-14-280W

 280 46200 165 120°

N-HBL-14-300W

 300 49500 165 120°

1000WMH,

12-lamp T5HO

N-HBL-14-320W

 320 52800 165 120°

ccessories

15W or 30W UL Listed Emergency Backup

Plugable Power Tunable 1x2ft 1x4ft Linear High Bay With Bi Level Motion Sensor

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 15 or 30W
  • Illumination Time: 90min
  • Battery Type:Li-ion
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Plugable Power Tunable 1x2ft 1x4ft Linear High Bay With Bi Level Motion Sensor

Applications

Schools, offices, conference room, hospitality etc.

Plugable Power Tunable 1x2ft 1x4ft Linear High Bay With Bi Level Motion Sensor


Product Tags:

Power Tunable Linear High Bay



Linear High Bay 1x2ft



LED Linear High Bay Lights Plugable


Wholesale Plugable Power Tunable 1x2ft 1x4ft Linear High Bay With Bi Level Motion Sensor from china suppliers

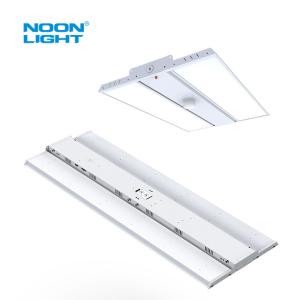

Plugable Power Tunable 1x2ft 1x4ft Linear High Bay With Bi Level Motion Sensor Images
