DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

Product Categories
Zhongshan NoonLighting Co., Ltd.
Contact Now

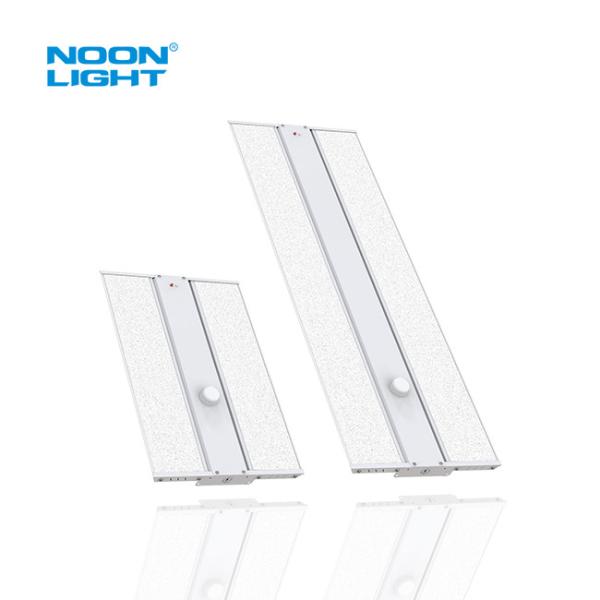

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

Brand Name : Noonlight

Model Number : N-HBL

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 50pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 28-30 Working days

Packaging Details : 1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm

Product Name : LED PANEL RETROFIT

Power : 27W-24W-20W-16W Adjustable

CCT : 30K/35K/40K/50K CCT Tunable

Luminous Efficacy : 165 lm/W

Installation : Surface Mounted, Wall Mounted

Warranty(Year) : 5 years warrantly

Contact Now

​​

  • Available in 1x2’ wide and 1x4’ sizes, this product has a 0-10V Dimming Driver Standard (10% – 100%) and operating temperature of -40°C to +40°C (-40°F to +104°F), 30°C (86°F).​

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

​

  • CCT and Power linear high bay 120-347VAC or 347-480VAC Class P Programmable LED Driver, 0-10V Dimming, Dim to Off.
  • Power selective LED linear high bay One and Only Cutting Edge Class 2 Driver Techonology,
  • 1 Driver only for All of Power Up to 320W with Class 2 Certificated(100-347VAC only)
  • Power selective LED linear high bay, minimize stock, 1 SKU can cover max. of 12 models.
  • Front Access Door for Easy Maintenance
  • Cct Adjustable Linear High Bay Light Various Lens Option: Clear, Frosted, Angled lens
  • Up to 165LM/W, Range From 5000lm-53000lm

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

SERIES DIMENSIONS
N-HBL-14 L46.44 x W16.1 xH1.77”

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

Model No DLC Input Voltage Wattage Lens CCT Rated Lumen @ 50K

Rated

Efficancy

@ 50K

 Viewing Angle Replacing

N-HBL-12-30W

Pending

100-277VAC

or

100-347VAC

 30

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 4950 165 120°

100W MH,

4-lamp T8 NBF

N-HBL-12-35W

 35 5775

N-HBL-12-40W

 40 6600

N-HBL-12-50W

 50 8250

N-HBL-12-50W

Pending

100-277VAC

or

100-347VAC

 50

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 8250 165 120°

175W MH,

4-lamp T8 HBF,

2-lamp T5HO

N-HBL-12-55W

 55 9075

N-HBL-12-60W

 60 9900

200W MH,

6-lamp T8 NBF

N-HBL-12-65W

 65 10725

N-HBL-12-60W

Pending

100-277VAC

or

100-347VAC

 60

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 9900 165 120°

250W MH,

6-lamp T8 HBF, 4-lamp T5HO

N-HBL-12-70W

 70 11550

N-HBL-12-75W

 75 12375

400W MH,

6-lamp T5HO

N-HBL-12-85W

 85 14025

N-HBL-12-95W

Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 95

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 15675 165 120°

N-HBL-12-105W

 105 17325

N-HBL-12-115W

 115 18975

575W MH,

10-lamp T8 HBF

N-HBL-12-125W

 125 20625

750W MH,

8-lamp T5HO

N-HBL-12-130W

 Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 130

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 21450 165 120°

875W MH,

10-lamp T5HO

N-HBL-12-140W

 140 23100

N-HBL-12-155W

 155 25575

1000WMH,

12-lamp T5HO

N-HBL-12-170W

 170 28050

N-HBL-14-150W

 Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 150

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 24750 165 120°

875W MH,

10-lamp T5HO

N-HBL-14-170W

 170 28050 165 120°

N-HBL-14-190W

 190 31350 165 120°

1000WMH,

12-lamp T5HO

N-HBL-14-210W

 210 34650 165 120°

N-HBL-14-190W

 Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 190

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 31350 165 120°

875W MH,

10-lamp T5HO

N-HBL-14-210W

 210 34650 165 120°

N-HBL-14-230W

 230 37950 165 120°

1000WMH,

12-lamp T5HO

N-HBL-14-250W

 250 41250 165 120°

N-HBL-14-260W

 Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 260

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 42900 165 120°

875W MH,

10-lamp T5HO

N-HBL-14-280W

 280 46200 165 120°

N-HBL-14-300W

 300 49500 165 120°

1000WMH,

12-lamp T5HO

N-HBL-14-320W

 320 52800 165 120°

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

Cct Tunable LED Linear Highbay Suitable for Surface mounted, suspended mounted.

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

Linear high bay with emergency back up

Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

  • Dual PD Technology: can identify daylight and artificial light.
  • Input Voltage: 12VDC Output: 0-10V, 25mA sinking current
  • Mounting Height: Max. 40ft. Detection Range: 30ft @ 40ft height in diameter
  • IR remote commissioning: easy setting via remote controller
  • Photocell available

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

15W or 30W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 15 or 30W
  • Illumination Time: 90min
  • Battery Type:Li-ion
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

Power Adjustable Slide Switch Position
Size/Positon 0 1 2 3
1X4 150 170 190 210
1X4 190 210 230 250
1X4 260 280 300 320

CCT Tunable Slide Switch Position
Position/Group CCT
Low 4000K
Middle 4500K
High 5000K

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable

Schools, offices, conference room, hospitality etc.

DLC5.1 Premium 1x2FT 1x4FT Linear High Bay 40K / 50K CCT Tunable
