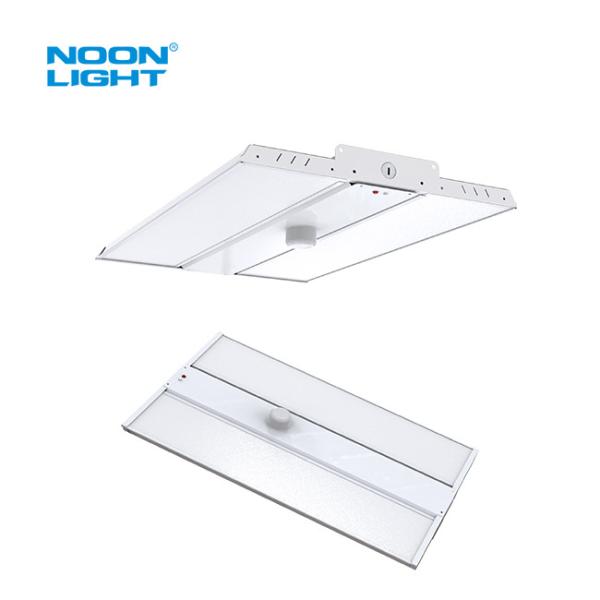

4 Wattage adjustable 1x2FT 170W Linear highbay with DLC5.1 Listed
Noonlight Linear Highbay Led fixture is the perfect solution for a wide variety of applications and mounting heights. Its multiple lumen packages make it an ideal choice as a one for one replacement of conventional fluorescent and metal halide high bay systems.
- 120-277Vac Linear highbay One and Only Cutting Edge Class 2 Driver Techonology,
- 1 Driver only for All of Power Up to 320W with Class 2 Certificated(100-347VAC only)
- 4 Step Power Adujustable, and 3 CCT Tunable(Optional), minimize stock, 1 SKU can cover max. of 12 models.
- Front Access Door for Easy Maintenance
- Plugable PIR Sensor and Motion Sensor, Zhaga PIR & Motion Sensor
- Built-in Emergency Driver Option
| SERIES |
DIMENSIONS |
| N-HBL-12 |
L24.79 x W16.1 x H1.77” |
| N-HBL-14 |
L46.44 x W16.1 xH1.77” |
| Model No |
DLC |
Input Voltage |
Wattage |
Lens |
CCT |
Rated Lumen @ 50K |
Rated
Efficancy
@ 50K
|
Viewing Angle |
Replacing |
| N-HBL-12-30W-8XX- |
Pending
|
100-277VAC
or
100-347VAC
|
30 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
4950 |
165 |
120° |
100W MH,
4-lamp T8 NBF
|
| N-HBL-12-35W-8XX |
35 |
5775 |
| N-HBL-12-40W-8XX |
40 |
6600 |
| N-HBL-12-50W-8XX |
50 |
8250 |
| N-HBL-12-50W-8XX |
Pending
|
100-277VAC
or
100-347VAC
|
50 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
8250 |
165 |
120° |
175W MH,
4-lamp T8 HBF,
2-lamp T5HO
|
| N-HBL-12-55W-8XX |
55 |
9075 |
| N-HBL-12-60W-8XX |
60 |
9900 |
200W MH,
6-lamp T8 NBF
|
| N-HBL-12-65W-8XX |
65 |
10725 |
| N-HBL-12-60W-8XX |
Pending
|
100-277VAC
or
100-347VAC
|
60 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
9900 |
165 |
120° |
250W MH,
6-lamp T8 HBF, 4-lamp T5HO
|
| N-HBL-12-70W-8XX |
70 |
11550 |
| N-HBL-12-75W-8XX |
75 |
12375 |
400W MH,
6-lamp T5HO
|
| N-HBL-12-85W-8XX |
85 |
14025 |
| N-HBL-12-95W-8XX |
Pending
|
100-277VAC
or
100-347VAC
or
347-480VAC
|
95 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
15675 |
165 |
120° |
400W MH,
6-lamp T5HO
|
| N-HBL-12-105W-8XX |
105 |
17325 |
| N-HBL-12-115W-8XX |
115 |
18975 |
575W MH,
10-lamp T8 HBF
|
| N-HBL-12-125W-8XX |
125 |
20625 |
750W MH,
8-lamp T5HO
|
| N-HBL-12-130W-8XX |
Pending |
100-277VAC
or
100-347VAC
or
347-480VAC
|
130 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
21450 |
165 |
120° |
875W MH,
10-lamp T5HO
|
| N-HBL-12-140W-8XX |
140 |
23100 |
| N-HBL-12-155W-8XX |
155 |
25575 |
1000WMH,
12-lamp T5HO
|
| N-HBL-12-170W-8XX |
170 |
28050 |
Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting
Default Setting/Setting
- Sensitivity: 100%/25%, 50%, 75%, 100%
- Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
- Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
- Twilight Time: never turn off/1min, 30min, 1h, never tun off
- Twilight Level: 20%/off, 10%, 20%, 50%
15W or 30W UL Listed Emergency Backup
- Listed for field Instllation-UL924 & CSA C22.2 NO. 141
- Input: 120-277VAC/347VAC 50/60Hz
- Output: 25-50VDC, 15 or 30W
- Illumination Time: 90min
- Battery Type:Li-ion
- Battery Recharge Time: 24Hrs
- Surge Protection: 3KV
Power Tunable Linear High Bay HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
| Power Adjustable Slide Switch Position |
| Size/Positon |
0 |
1 |
2 |
3 |
| 1X2 |
30W |
35W |
40W |
50W |
| 1X2 |
50W |
55W |
60W |
65W |
| 1X2 |
60W |
70W |
75W |
85W |
| 1X2 |
95 |
105 |
115 |
125 |
| 1X2 |
130 |
140 |
155 |
170 |
Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.
Schools, offices, conference room, hospitality etc.
