Product Description:

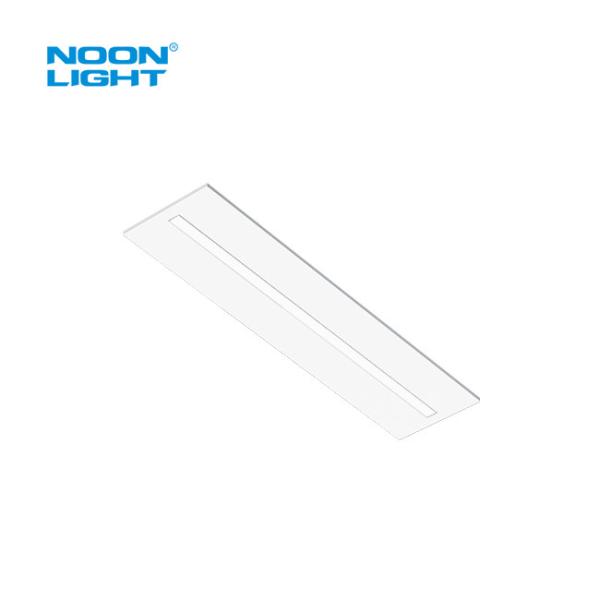

Introducing the LED Grille Panel Light
If you're looking for a modern lighting solution, the LED grille panel light is one option to consider. This light features a unique architectural design that sets it apart from traditional lighting fixtures. Plus, it's super thin and lightweight, making it easy to mount or install.
Installation Options:
One of the best features of the LED grille panel light is that it's suitable for a variety of installation options. You can easily install it as pendent, mounted, recessed or T-grid installation, depending on your needs and preferences. This flexibility makes it a popular choice for architects, designers, and building owners who want highly versatile lighting solutions for indoor spaces.
Modular Light Source Design:
To make this light even more customizable, it features a modular light source design. This means you can choose the number of light sources you need for your specific space. You won't have to worry about wasted light or insufficient brightness – the smart and flexible choice options ensure you get the perfect amount of illumination.
Beam Angles and Lengths:
We understand that different spaces may require different lighting beam angles. That's why we offer various lighting beam angles to choose from – allowing you to select the optimal lighting angle to fit your needs. We also offer standard length or customized length options. So, whether you need a standard size for a common application or a specific size for a specialized project, this light will meet your requirements.
Dimension
Features:
The product features a wide range of voltage compatibility, including 120~277VAC, 120~347VAC, and 220~240VAC. This ensures that it can be utilized in a variety of environments with different voltage requirements.
Additionally, customers can choose from multiple wattage options ranging from 20W, 30W, 40W, and 60W, making it easier to choose the power consumption based on their specific needs and requirements.
The product comes with two different light efficiency options: 125Lm/W and 160Lm/W. Customers can choose which option best suits their needs and preferences.
Moreover, buyers can also select from multiple beam angle options, which are 30°, 60°, 90°, and 120°. Having different beam angle options ensures that light is distributed in a way that is most appropriate for the intended use and environment.
This product is also dimmable, with three different settings: 0-10V (dual channel), Dali 2, and Non-dim. This provides greater flexibility and control over the amount of light and energy consumption. Lastly, it comes with four different wattage adjustment settings for added convenience and customization.
Specification
| Model No |
ETL |
Input Voltage |
Wattage |
LPW |
Lumen |
Beam Angle |
| N-GL-22-20W-2L-DF |
YES |
120-277VAC
120-347VAC
220-240VAC |
20W(Max) |
160LM/W(Max) |
3200LM(Max) |
120° |
| N-GL-22-20W-2L-[30,60,90] |
125LM/W(Max) |
2500LM(Max) |
30°,60°,90° |
| N-GL-22-30W-3L-DF |
YES |
120-277VAC
120-347VAC
220-240VAC |
30W(Max) |
160LM/W(Max) |
4800LM(Max) |
120° |
| N-GL-22-30W-2L-[30,60,90] |
125LM/W(Max) |
3750LM(Max) |
30°,60°,90° |
| N-GL-24-40W-2L-DF |
YES |
120-277VAC
120-347VAC
220-240VAC |
40W(Max) |
160LM/W(Max) |
6400LM(Max) |
120° |
| N-GL-24-40W-2L-[30,60,90] |
125LM/W(Max) |
5000LM(Max) |
30°,60°,90° |
| N-GL-24-60W-1L-DF |
YES |
120-277VAC
120-347VAC
220-240VAC |
60W(Max) |
160LM/W(Max) |
9600LM(Max) |
120° |
| N-GL-24-60W-1L-[30,60,90] |
125LM/W(Max) |
7500LM(Max) |
30°,60°,90° |
| N-GL-14-20W-1L-DF |
YES |
120-277VAC
120-347VAC
220-240VAC |
20W(Max) |
160LM/W(Max) |
3200LM(Max) |
120° |
| N-GL-14-20W-1L-[30,60,90] |
125LM/W(Max) |
2500LM(Max) |
30°,60°,90° |
| N-GL-14-40W-1L-DF |
YES |
120-277VAC
120-347VAC
220-240VAC |
40W(Max) |
160LM/W(Max) |
6400LM(Max) |
120° |
| N-GL-14-40W-1L-[30,60,90] |
125LM/W(Max) |
5000LM(Max) |
30°,60°,90° |
| N-GL-4F-30W-1L-DF |
YES |
120-277VAC
120-347VAC
220-240VAC |
30W(Max) |
160LM/W(Max) |
4800LM(Max) |
120° |
| N-GL-4F-30W-1L-[30,60,90] |
125LM/W(Max) |
3750LM(Max) |
30°,60°,90° |
Accessories
Specification:
5.8Ghz C-Band Microwave.
Input Voltage: 12 - 24V DC.
Input Current:≥25ma.
Operation Temperature: -20°c~+ 70°c
Applications:
Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
