Product Description:

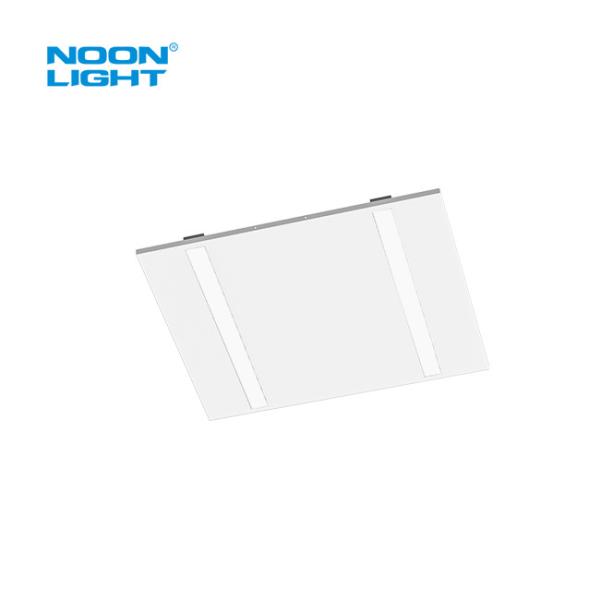

-LED grille panel light
-Unique architechtual design, and super thin
-Very easy for pendent, mounted, recessed and T-grid installation
-Modular light source design
Features:
There are several options available for the beam angle of these lights. These include 30°, 60°, 90°, and 120°.
These lights are dimmable, with several options for controlling the level of illumination. The dimmable options include 0-10V (dual channel), Dali 2, and Non-dim.
One of the standout features of these lights is their wattage adjustability. They can be adjusted to four different wattage levels, making them versatile for a range of different needs.
The CCT of these lights is also tunable, with four different options available.
The CRI of these lights is also an important consideration. They are available with a CRI of greater than 80, greater than 90, or greater than 95 if desired.
In addition to these features, these lights can also be equipped with a motion sensor and emergency battery pack if desired.
| Wattage |
Luminosity |
Dimensions |
| 30W |
4800Lm |
23.75 x 23.75IN |
| 40W |
6400Lm |
11.75 x 47.75IN |
| 60W |
9600Lm |
23.75 x 47.75IN |
| 30W |
4800Lm |
5.87 x 47.75IN |
Technical Parameters:
| Product Name |
LED GRILLE LIGHT |
| Application |
Super Market, Office, Commercial Places, Hospital, Gym, Warehouse, Workshop, Shopping Mall |
| Input Voltage |
120-277VAC / 120-347VAC / 220-240VAC |
| Power |
20W(Max) / 30W(Max) |
| Luminous Efficacy |
160LM/W(Max) / 125LM/W(Max) |
| Color Temperature |
3000K / 3500K 4000K / 5000K |
| Material |
White Powder Painted Steel |
| Warranty |
5 Years |
| Beam Angle |
30°,60°,90°,120° |
| Luminous Flux |
3200LM(Max) / 4800LM(Max) |
Accessories
Specification:
5.8Ghz C-Band Microwave.
Input Voltage: 12 - 24V DC.
Input Current:≥25ma.
Operation Temperature: -20°c~+ 70°c
Default Setting/Setting
Sensitivity: 100% / 25%, 50%, 75%, 100%
Daylight Sensor: Disable / 2lux,10lux, 25lux, 50lux ,100lux, 300lux, Disable , Ambient Learn
Twilgith Time: Infinite / 10s, 5min, 10min, 30min, 1h,Infinite
Applications:
Super market, office, commercial places, hospital, gym, warehouse, workshop, shopping mall
