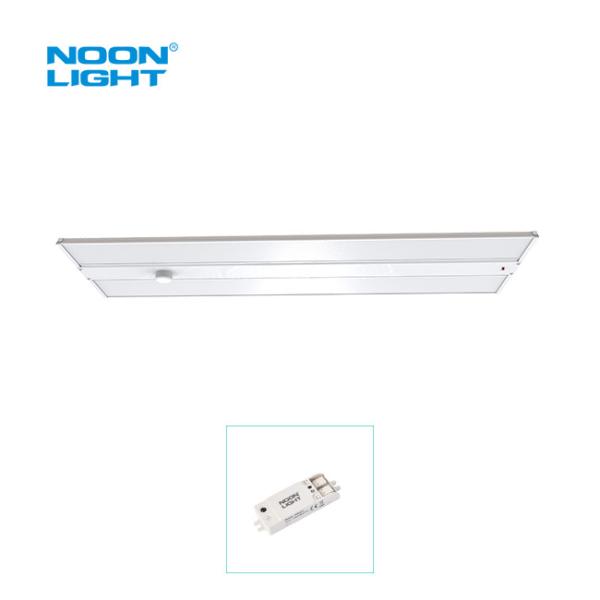

4fT LED Industrial High Bay Light for Warehouse Lighting
- Noonlight Linear Highbay Led fixture is the perfect solution for a wide variety of applications and mounting heights. Its multiple lumen packages make it an ideal choice as a one for one replacement of conventional fluorescent and metal halide high bay systems.
- Ideal Applications: Warehouse lighting, distribution center lighting, gym lighting, automotive service bay lighting, factory lighting
1x4FT LED Linear High Bay Features
- 120-347VAC or 347-480VAC Class P Programmable LED Driver, 0-10V Dimming, Dim to Off.
- Front Access Door for Easy Maintenance
- Various Lens Option: Clear, Frosted, Angled lens
- Power selective LED linear high bay Up to 165LM/W, Range From 5000lm-53000lm
- Plugable PIR Sensor and Motion Sensor, Zhaga PIR & Motion Sensor
- 120-277Vac Linear Highbay Built-in Emergency Driver Option
LED Linear High Bay Certificate
Dimension
|
SERIES
|
DIMENSIONS |
|
N-HBL-14
|
L46.44 x W16.1 xH1.77” |
Specification
| Model No |
DLC |
Input Voltage |
Wattage |
Lens |
CCT |
Rated Lumen @ 50K |
Rated
Efficancy
@ 50K
|
Viewing Angle |
Replacing |
| N-HBL-14-150W |
Pending |
100-277VAC
or
100-347VAC
or
347-480VAC
|
150 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
24750 |
165 |
120° |
875W MH,
10-lamp T5HO
|
| N-HBL-14-170W |
Pending
|
170 |
28050 |
165 |
120° |
875W MH,
10-lamp T5HO
|
| N-HBL-14-190W |
Pending |
190 |
31350 |
165 |
120° |
1000WMH,
12-lamp T5HO
|
| N-HBL-14-210W |
Pending |
210 |
34650 |
165 |
120° |
1000WMH,
12-lamp T5HO
|
| N-HBL-14-190W |
Pending |
100-277VAC
or
100-347VAC
or
347-480VAC
|
190 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
31350 |
165 |
120° |
875W MH,
10-lamp T5HO
|
| N-HBL-14-210W |
Pending
|
210 |
34650 |
165 |
120° |
875W MH,
10-lamp T5HO
|
| N-HBL-14-230W |
Pending |
230 |
37950 |
165 |
120° |
1000WMH,
12-lamp T5HO
|
| N-HBL-14-250W |
Pending |
250 |
41250 |
165 |
120° |
1000WMH,
12-lamp T5HO
|
| N-HBL-14-260W |
Pending |
100-277VAC
or
100-347VAC
or
347-480VAC
|
260 |
Frosted/
Clear
|
40/45/50K Tunable
or
4000K,
5000K
|
42900 |
165 |
120° |
875W MH,
10-lamp T5HO
|
| N-HBL-14-280W |
Pending
|
280 |
46200 |
165 |
120° |
875W MH,
10-lamp T5HO
|
| N-HBL-14-300W |
Pending |
300 |
49500 |
165 |
120° |
1000WMH,
12-lamp T5HO
|
| N-HBL-14-320W |
Pending |
320 |
52800 |
165 |
120° |
1000WMH,
12-lamp T5HO
|
Accessories
LED Linear High Bay with motion sensor
Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting
Specification
- Dual PD Technology: can identify daylight and artificial light.
- Input Voltage: 12VDC Output: 0-10V, 25mA sinking current
- Mounting Height: Max. 40ft. Detection Range: 30ft @ 40ft height in diameter
- IR remote commissioning: easy setting via remote controller
- Photocell available
Default Setting/Setting
- Sensitivity: 100%/25%, 50%, 75%, 100%
- Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
- Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
- Twilight Time: never turn off/1min, 30min, 1h, never tun off
- Twilight Level: 20%/off, 10%, 20%, 50%
Advantages
Cct Adjustable Linear High Bay Light
HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE
|
Power Adjustable Slide Switch Position
|
| Size/Positon |
0 |
1 |
2 |
3 |
| 1X4 |
150 |
170 |
190 |
210 |
| 1X4 |
190 |
210 |
230 |
250 |
| 1X4 |
260 |
280 |
300 |
320 |
|
CCT Tunable Slide Switch Position
|
| Position/Group |
CCT |
| Low |
4000K |
| Middle |
4500K |
| High |
5000K |
Manufacturing Abilities
Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.
1x4FT LED Linear High Bay Applications
Schools, offices, conference room, hospitality etc.
