Product Description:

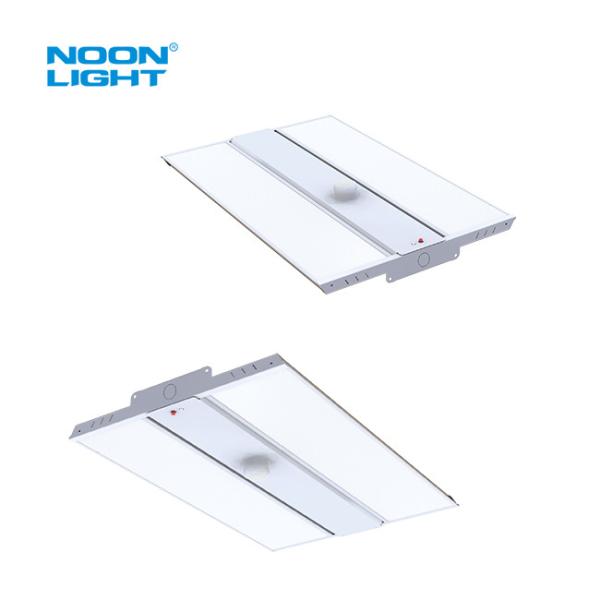

Noonlight Linear Highbay Led fixture is an excellent choice for a variety of purposes and mounting heights. It offers multiple lumen packages, making it suitable for replacing traditional fluorescent and metal halide high bay systems. It is available in 120-347VAC or 347-480VAC Class P Programmable LED Driver, with a choice of 0-10V Dimming, Dim to Off feature or Clear Lens, Frosted Lens and Angled Lens.
It can be found in 1x2' wide and 1x4’ sizes, each complete with 0-10V Dimming Driver Standard (10% – 100%), and the product operates at temperatures ranging from -40°C to +40°C (-40°F to +104°F), 30°C (86°F).
Features:
The DLC5.1 Premium LED Linear High Bay 1 is a powerful light source that has a Class 2 certification and can handle up to 320W of power on a 100-347VAC system. It has a 4 step power adjustable and 3 CCT tunable (optional) setting that allows users to maximize the stock in one SKU, and can cover up to 12 models.
The High Bay has a useful front access door for easy maintenance, and a range of lens options from clear, frosted and angled lenses. It is also designed with a plug-able PIR sensor and motion sensor, Zhaga plug-able, and also a built-in emergency driver option.
Technical Parameters:
| Parameters |
Details |
| Product Name |
LED Linear High Bay Lights |
| Keywords |
CCT Tunable Linear High Bay, Wattage adjustable Linear highbay, 4FT Linear High bay fixture |
| Power |
150W - 170W - 190W - 210W |
| Beam Angle |
120° |
| Working Temperature |
-20~+45℃ |
| Input Voltage |
100-277VAC Or 100-347VAC Or 347-480VAC |
| Lifespan |
50,000hrs |
| Color Temperature |
4000K / 5000K |
| CRI |
Ra>80 |
| Material |
White Powder Painted Steel |
| Warranty |
5 Years |
| Light Source |
SMD2835 |
Applications:
Schools, offices, conference room, hospitality etc.
Customization:
Customized LED Linear High Bay Lights
Brand Name: Noonlight
Model Number: N-HBL-2FT
Place of Origin: China
Certification: DLC, ISO9001, Rosh, ETL
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 30 day(s)
Payment Terms: T/T, AliPay, PayPal
Supply Ability: 3000 pcs/day
Lifespan: 50,000hrs
Product Name: LED Linear High Bay Lights
CRI: Ra>80
Light Source: SMD2835
Input Voltage: 100-277VAC Or 100-347VAC Or 347-480VAC
Highlights of Our LED Linear High Bay Lights
4FT Linear High bay fixture, 1x2FT Linear High bay lamp, 165lm/W Linear High Bay Light
