1x2FT / 1x4FT Linear High Bay Power Tunable With Plugable PIR Sensor

Product Categories
Zhongshan NoonLighting Co., Ltd.
Contact Now

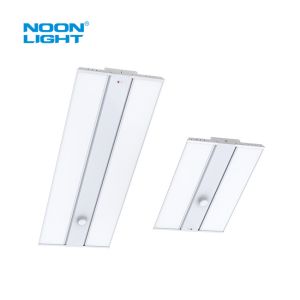

1x2FT / 1x4FT Linear High Bay Power Tunable With Plugable PIR Sensor

Brand Name : Noonlight

Model Number : N-HBL

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 50pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm

Product Name : Adjustable Lumen With 3000K 3500K 4000K 5000K Color Switchable 90min UL 8W Emergency Backup Inclu

Power : 50W-55W-60W-65W Adjustable

CCT : 30K/35K/40K/50K CCT Tunable

CRI : Ra>80

Waterproof : IP-65

Warranty(Year) : 5 years warrantly

Contact Now

Power Tunable 1x2FT,1x4FT Plugable Linear High Bay With PIR Sensor

Noonlight Linear Highbay Led fixture is the perfect solution for a wide variety of applications and mounting heights. Its multiple lumen packages make it an ideal choice as a one for one replacement of conventional fluorescent and metal halide high bay systems.​​

Ideal Applications: Warehouse lighting, distribution center lighting, gym lighting, automotive service bay lighting, factory lighting

​

Features​

  • 120-277Vac Linear highbay One and Only Cutting Edge Class 2 Driver Techonology,
  • High lighting effect, upto 165LM/W
  • Front access junction box,easy for maintaining
  • Plugable PIR Sensor and motion sensor, Zhaga PIR & Motion sensor.
  • 1 Driver only for All of Power Up to 320W with Class 2 Certificated(100-347VAC only)
  • 4 Step Power Adujustable, and 3 CCT Tunable(Optional), minimize stock, 1 SKU can cover max. of 12 models.
  • Built-in Emergency Driver Option

LED Linear High Bay Specification

Model No DLC Input Voltage Wattage Lens CCT Rated Lumen @ 50K

Rated

Efficancy

@ 50K

 Viewing Angle Replacing
N-HBL-12-30W-8XX-

Pending

100-277VAC

or

100-347VAC



 30

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K



 4950 165 120°

100W MH,

4-lamp T8 NBF
N-HBL-12-35W-8XX 35 5775
N-HBL-12-40W-8XX 40 6600
N-HBL-12-50W-8XX 50 8250
N-HBL-12-50W-8XX

Pending

100-277VAC

or

100-347VAC



 50

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K



 8250 165 120°

175W MH,

4-lamp T8 HBF,

2-lamp T5HO
N-HBL-12-55W-8XX 55 9075
N-HBL-12-60W-8XX 60 9900

200W MH,

6-lamp T8 NBF
N-HBL-12-65W-8XX 65 10725
N-HBL-12-95W-8XX

Pending

100-277VAC

or

100-347VAC

or

347-480VAC



 95

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K



 15675 165 120°

400W MH,

6-lamp T5HO
N-HBL-12-105W-8XX 105 17325
N-HBL-12-115W-8XX 115 18975

575W MH,

10-lamp T8 HBF
N-HBL-12-125W-8XX 125 20625

750W MH,

8-lamp T5HO
N-HBL-12-130W-8XX Pending

100-277VAC

or

100-347VAC

or

347-480VAC

 130

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 21450 165 120°

875W MH,

10-lamp T5HO
N-HBL-12-140W-8XX 140 23100
N-HBL-12-155W-8XX 155 25575

1000WMH,

12-lamp T5HO
N-HBL-12-170W-8XX 170 28050

Accessories

1x2FT / 1x4FT Linear High Bay Power Tunable With Plugable PIR Sensor

15W or 30W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 15 or 30W
  • Illumination Time: 90min
  • Battery Type:Li-ion
  • Battery Recharge Time: 24Hrs
  • Battery Type:Li-ion
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

Advantages

Power Tunable Linear High Bay HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

1x2FT / 1x4FT Linear High Bay Power Tunable With Plugable PIR Sensor

Power Adjustable Slide Switch Position
Size/Positon 0 1 2 3
1X2 60W 70W 75W 85W
1X2 95 105 115 125
1X2 130 140 155 170

Manufacturing Abilities

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.
