Product Description:

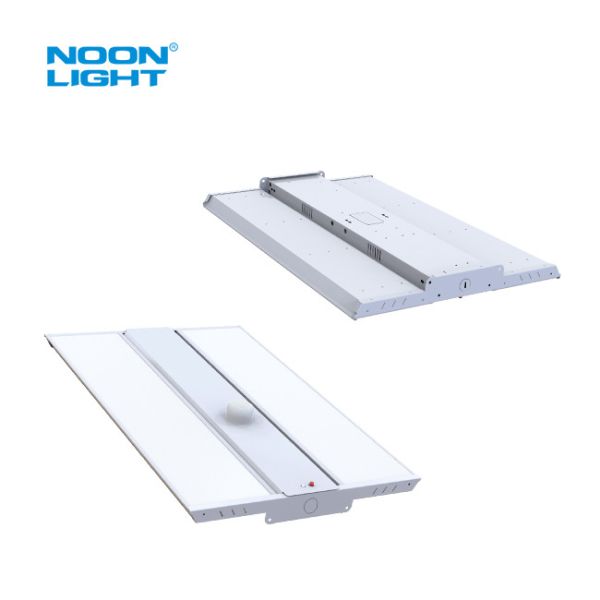

Noonlight Linear Highbay Led fixture is the perfect solution for a wide variety of applications and mounting heights. Its multiple lumen packages make it an ideal choice as a one for one replacement of conventional fluorescent and metal halide high bay systems.
Available in 1x2’ wide and 1x4’ sizes, this product has a 0-10V Dimming Driver Standard (10% – 100%) and is available in 120-347VAC or 347-480VAC Class P Programmable LED Driver, 0-10V Dimming, Dim to Off. With Opertaing temperature of -40°C to +40°C (-40°F to +104°F), 30°C (86°F), our Noonlight Linear Highbay Led fixture is CE/CB, UL/cUL, Damp Location and RoHS/ REACH Compliant and is available in Clear, Frosted and Angled lenses to meet the requirements of any project.
Features:
The high light effect of this product can reach up to 165LM/W, which is remarkable. Also, its junction box can be accessed by the front panel conveniently, so as to facilitate daily maintenance.
Furthermore, this product offers plugable Zhaga PIR and Motion Sensor for motion and human detection, and the same driver can be used for wattage ranging from 30-320W, so as to make it cost-effective and ensure smooth dimming.
In addition, it features four-step power tunable and three CCT selectable, which minimizes stock in a single SKU and can cover up to 12 models. Moreover, it is equipped with a built-in emergency driver option.
Specification:
| Product Name |
1x2FT LED Linear Highbay |
| Input Voltage |
120-277VAC, 0-10V Dimmable, Dim to Off |
| Lumen Efficacy |
165LM/W |
| Dimension |
L24.6 x W16 x H1.8" |
| CCT |
4000/4500/5000K Tunable
or 4000K,5000K |
| Max Power |
48W |
65W |
85W |
125W |
| Lumen |
7950-6600-5775-4950LM |
10725-9900-9075-8250LM |
14025-11550-9900-7425LM |
20625-18975-17325-15675LM |
| Wattage |
48W-40W-35W-30W |
65W-60W-55W-50W |
85W-70W-60W-45W |
125W-115W-105W-95W |
| Installation |
Pendant Mounting & Surface Mounting |
| Certificates |
ETL Listed, DLC 5.1 Premium |
Applications:
Warehouse lighting, distribution center lighting, gym lighting, automotive service bay lighting, factory lighting
Customization:
Noonlight N-HBL-2FT LED Linear High Bay Lights
- Brand Name: Noonlight
- Model Number: N-HBL-2FT
- Place of Origin: China
- Certification: DLC, ISO9001, Rosh, ETL
- Minimum Order Quantity: 100pcs
- Price: Negotiable
- Packaging Details: Carton box
- Delivery Time: 30 day(s)
- Payment Terms: T/T, AliPay, PayPal
- Supply Ability: 3000 pcs/day
- Power: 50W - 55W - 60W - 65W
- Luminous Flux: 8250LM - 9075LM - 9900LM - 10725LM
- CRI: Ra>80
- Beam Angle: 120°
- Input Voltage: 100-277VAC Or 100-347VAC Or 347-480VAC
- Features: LED Linear highbay with Bi-level sensor, CCT Tunable Linear High Bay Lights.
