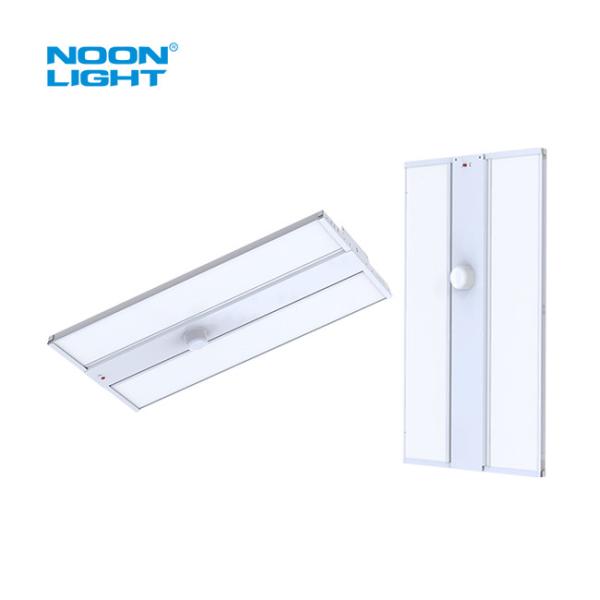

Waterproof IP65 LED Linear High Bay Surface Mounted / Wall Mounted

Name: Waterproof IP65 LED Linear High Bay Surface Mounted Wall Mounted
Brand: Noonlight
Price: 1 USD

Brand Name : Noonlight

Model Number : N-HBL

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm

Product Name : DLC5.1 Premium LED Linear high bay

Input Voltage(V) : 100-277VAC or 100-347VAC or 347-480VAC

Power : 260W-280W-300W-320W Adjustable

CCT : 30K/35K/40K/50K CCT Tunable

Luminous Efficacy : 165lm/W

CRI : Ra>80

Waterproof : IP-65

Installation : Surface Mounted, Wall Mounted

Contact Now

Universal Input Voltage 120-377vac/347vac,347vac-480vac LED Linear High Bay With 5 Years Warranty

Ideal Applications: Warehouse lighting, distribution center lighting, gym lighting, automotive service bay lighting, factory lighting

Linear LED High Bay Features

High lighting effect, upto 165LM/W
Front access junction box,easy for maintaining
One and Only Cutting Edge Class 2 Driver Techonology,
1 Driver only for All of Power Up to 320W with Class 2 Certificated(100-347VAC only)
CCT and Power linear high bay Built-in Emergency Driver Option

Specification

Product Name	1X4FT LED Linear Highbay
Input Voltage	120-277VAC, 0-10V Dimmable, Dim to Off
Lumen Efficacy	165LM/W
Dimension	L46 x W16 x H1.8"
CCT	4000/4500/5000K Tunable or 4000K,5000K
Max Power	210W	250W	320W
Lumen	32250-29450-26350-23250LM	38750-35650-33325-30225LM	52800-49500-46200-42900LM
Wattage	210W-190W-170W-150W	250W-230W-215W-195W	320W-300W-280W-260W
Installation	Pendant Mounting & Surface Mounting
Certificates	ETL Listed, DLC 5.1 Premium

Accessories

15W or 30W UL Listed Emergency Backup

Waterproof IP65 LED Linear High Bay Surface Mounted / Wall Mounted

Listed for field Instllation-UL924 & CSA C22.2 NO. 141
Input: 120-277VAC/347VAC 50/60Hz
Illumination Time: 90min
Battery Type:Li-ion
Battery Recharge Time: 24Hrs
Surge Protection: 3KV
Protection:
Input over-current Protection (Fuse)
Output Low Voltage Protection
Output Short Circuit Protection

Advantages

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Waterproof IP65 LED Linear High Bay Surface Mounted / Wall Mounted

CCT Tunable Slide Switch Position
Position/Group	CCT
Low	4000K
Middle	4500K
High	5000K

Applications

Schools, offices, conference room, hospitality etc.

Waterproof IP65 LED Linear High Bay Surface Mounted / Wall Mounted
