Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Product Categories
Zhongshan NoonLighting Co., Ltd.
Contact Now

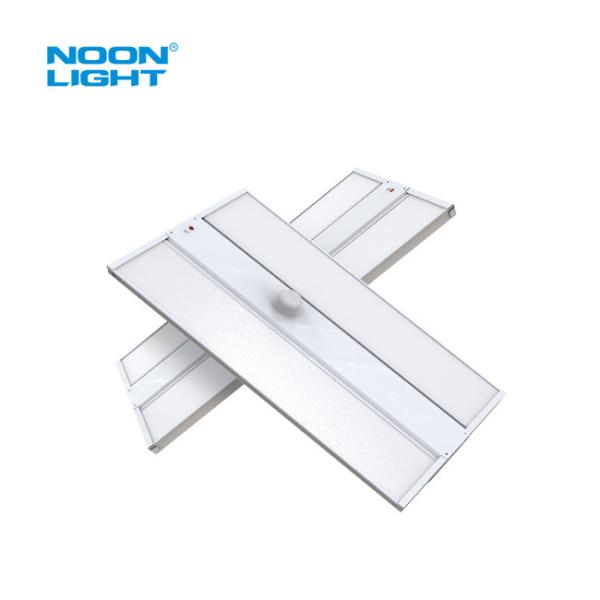

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Brand Name : Noonlight

Model Number : N-HBL

Certification : DLC / ETL / RoHS

Place of Origin : China

MOQ : 300

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 30+ working days

Packaging Details : 1pc/inner box, 10pcs/CTN, Packing Dimension: L655xW270xH312 mm

Product Name : 1x2FT 130W-140W-155W-170W Power Adjustable LED Panel Light 30K 35K 40K 50K Tunable Bi-level PIR Sensor EM Included

Input Voltage(V) : 100-277VAC or 100-347VAC

CRI : Ra>80

Waterproof : IP-65

Installation : Surface Mounted, Wall Mounted

Warranty(Year) : 5 years warrantly

Contact Now

1x2FT 130W-140W-155W-170W Power Adjustable LED Panel Light 30K 35K 40K 50K Tunable Bi-level PIR Sensor EM Included

  • Noonlight Linear Highbay Led fixture is the perfect solution for a wide variety of applications and mounting heights. Its multiple lumen packages make it an ideal choice as a one for one replacement of conventional fluorescent and metal halide high bay systems.

​

  • Available in 1x2’ wide and 1x4’ sizes, this product has a 0-10V Dimming Driver Standard (10% – 100%) and operating temperature of -40°C to +40°C (-40°F to +104°F), 30°C (86°F).

​

  • Ideal Applications: Warehouse lighting, distribution center lighting, gym lighting, automotive service bay lighting, factory lighting

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

​

  • CCT and Power linear high bay 4 Step Power Adujustable, and 3 CCT Tunable(Optional), minimize stock, 1 SKU can cover max. of 12 models.
  • Dlc Linear High Bay Front Access Door for Easy Maintenance
  • Various Lens Option: Clear, Frosted, Angled lens
  • Up to 165LM/W, Range From 5000lm-53000lm
  • Built-in Emergency Driver Option

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Model No DLC Input Voltage Wattage Lens CCT Rated Lumen @ 50K

Rated

Efficancy

@ 50K

 Viewing Angle Replacing
N-HBL-12-30W-8XX-F-CTPA-[Blank,HV]-SN

Pending

100-277VAC

or

100-347VAC



 30

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K



 4950 165 120°

100W MH,

4-lamp T8 NBF
N-HBL-12-35W-8XX-F-CTPA-[Blank,HV]-SN 35 5775
N-HBL-12-40W-8XX-F-CTPA-[Blank,HV]-SN 40 6600
N-HBL-12-50W-8XX-F-CTPA-[Blank,HV]-SN 50 8250
N-HBL-12-50W-8XX-F-CTPA-[Blank,HV]-SN

Pending

100-277VAC

or

100-347VAC




 50

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K




 8250 165 120°

175W MH,

4-lamp T8 HBF,

2-lamp T5HO
N-HBL-12-55W-8XX-F-CTPA-[Blank,HV]-SN 55 9075
N-HBL-12-60W-8XX-F-CTPA-[Blank,HV]-SN 60 9900

200W MH,

6-lamp T8 NBF
N-HBL-12-65W-8XX-F-CTPA-[Blank,HV]-SN 65 10725
N-HBL-12-60W-8XX-F-CTPA-[Blank,HV]-SN

Pending

100-277VAC

or

100-347VAC




 60

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K




 9900 165 120°

250W MH,

6-lamp T8 HBF, 4-lamp T5HO
N-HBL-12-70W-8XX-F-CTPA-[Blank,HV]-SN 70 11550
N-HBL-12-75W-8XX-F-CTPA-[Blank,HV]-SN 75 12375

400W MH,

6-lamp T5HO
N-HBL-12-85W-8XX-F-CTPA-[Blank,HV]-SN 85 14025
N-HBL-12-95W-8XX-F-CTPA-[Blank,HV]-SN

Pending

100-277VAC

or

100-347VAC

or

347-480VAC




 95

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K




 15675 165 120°

400W MH,

6-lamp T5HO
N-HBL-12-105W-8XX-F-CTPA-[Blank,HV]-SN 105 17325
N-HBL-12-115W-8XX-F-CTPA-[Blank,HV]-SN 115 18975

575W MH,

10-lamp T8 HBF
N-HBL-12-125W-8XX-F-CTPA-[Blank,HV]-SN 125 20625

750W MH,

8-lamp T5HO
N-HBL-12-130W-8XX-F-CTPA-[Blank,HV]-SN Pending

100-277VAC

or

100-347VAC

or

347-480VAC


 130

Frosted/

Clear

40/45/50K Tunable

or

4000K,

5000K

 21450 165 120°

875W MH,

10-lamp T5HO
N-HBL-12-140W-8XX-F-CTPA-[Blank,HV]-SN 140 23100
N-HBL-12-155W-8XX-F-CTPA-[Blank,HV]-SN 155 25575

1000WMH,

12-lamp T5HO
N-HBL-12-170W-8XX-F-CTPA-[Blank,HV]-SN 170 28050

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Plugable Linear High Bay Lights With PIR Sensor Bi-level 12V PIR Sensor/PIR Sensor with Daylight Harvesting

Specification

  • Dual PD Technology: can identify daylight and artificial light.
  • Input Voltage: 12VDC Output: 0-10V, 25mA sinking current
  • Mounting Height: Max. 40ft. Detection Range: 30ft @ 40ft height in diameter
  • IR remote commissioning: easy setting via remote controller
  • Photocell available

Default Setting/Setting

  • Sensitivity: 100%/25%, 50%, 75%, 100%
  • Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
  • Hold Time: 5min/10s, 1min, 5min, 5min, 10min, 15min, 20 min, 30min, 60 min
  • Twilight Time: never turn off/1min, 30min, 1h, never tun off
  • Twilight Level: 20%/off, 10%, 20%, 50%

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Linear High Bay Lights With Emergency Back Up

15W or 30W UL Listed Emergency Backup

  • Listed for field Instllation-UL924 & CSA C22.2 NO. 141
  • Input: 120-277VAC/347VAC 50/60Hz
  • Output: 25-50VDC, 15 or 30W
  • Illumination Time: 90min
  • Battery Type:Li-ion
  • Battery Recharge Time: 24Hrs
  • Surge Protection: 3KV
  • Protection:
  • Input over-current Protection (Fuse)
  • Output over-voltage Protection
  • Output Low Voltage Protection
  • Output Short Circuit Protection
  • Working Temp.: 10℃ to 50℃

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

HOW TO CHANGE THE WATTAGE & CCT IN THIS FIXTURE

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Power Adjustable Slide Switch Position
Size/Positon 0 1 2 3
1X2 30W 35W 40W 50W
1X2 50W 55W 60W 65W
1X2 60W 70W 75W 85W
1X2 95 105 115 125
1X2 130 140 155 170

CCT Tunable Slide Switch Position
Position/Group CCT
Low 4000K
Middle 4500K
High 5000K

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Noonlight offers One stop supply chain service to our clients, all of the processes are made in house, such as lasering, punching, bending, welding, painting, smt and assemblies.

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted

Schools, offices, conference room, hospitality etc.

Waterproof 1x2FT LED Linear High Bay Lights Surface / Wall Mounted
