Product Description:

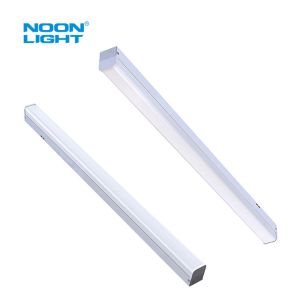

The 2.5” Linear Strip Light fixture is a practical, diffuse source of light that is suitable for a variety of commercial, retail, and residential applications. It features the latest in field-adjustable functions providing customers with greater power and color temperature flexibility.
Moreover, the Light fixture features two optional facilities - Occupancy Sensor and built-in Emergency Battery Backup - that maximize power savings.
Features:
UP TO 130LM/W
Our LED Strip Light offers high lumen output, up to 130LM/W. It is energy efficient and comes with various lens option such as clear, frosted and DLC5.1 Premium.
Minimize Stock / Easy Connection
This LED Strip Light can minimize stock with just one SKU to cover up to 16 models. Installation can be either surface mounted, suspended mounted or daisy chain. For easy connection, one sensor can control multiple lights with simple setup.
Motion Sensor / Control Options
Built-in PIR Sensor and Motion Sensor Options enable dimming function from 0-10V, 5%-100% brightness, and Dim-to-Off function. Besides, an auxiliary is provided to connect with low voltage sensor/BLE or other IOT network. For safety, Built-in Emergency Driver Option is also available.
Technical Parameters:
| Model No |
DLC |
Input Voltage |
Wattage |
Lens |
CRI/CCT |
Rated Lumen @ 30K |
Rated
Efficancy
@ 30K
|
Viewing Angle |
|
N-LS2.5-4FT-40W
|
YES
|
100-277VAC
or
100-347VAC
|
40W
|
Frosted/
Clear
|
Ra>80,
30K
35K
40K
50K
|
5200LM
|
130LM/W
|
120° |
|
N-LS2.5-4FT-30W
|
YES
|
100-277VAC
or
100-347VAC
|
30W
|
Frosted/
Clear
|
Ra>80,
30K
35K
40K
50K
|
3900LM
|
130LM/W
|
120° |
|
N-LS2.5-4FT-24W
|
YES
|
100-277VAC
or
100-347VAC
|
24W
|
Frosted/
Clear
|
Ra>80,
30K
35K
40K
50K
|
3250LM
|
130LM/W
|
120°
|
|
N-LS2.5-4FT-15W
|
YES |
100-277VAC
or
100-347VAC
|
15W
|
Frosted/
Clear
|
Ra>80,
30K
35K
40K
50K
|
1950LM
|
130LM/W
|
120° |
Applications:
Office, Stairwell, Corridor, Shop, Low Bay, Education, Hospital Lighting
Customization:
Customized service for LED Linear Strip Lights
- Brand Name: Noonlight
- Model Number: N-LS2.5-4FT
- Place of Origin: China
- Certification: DLC, ISO9001, Rosh, ETL
- Minimum Order Quantity: 100pcs
- Price: Negotiable
- Packaging Details: Carton box
- Delivery Time: 30 day(s)
- Payment Terms: T/T, AliPay, PayPal
- Supply Ability: 3000 pcs/day
- Luminous Flux: 5200/3900/3250/1950LM
- Material: White Powder Painted Steel
- Power: 40W/30W/24W/15W
- Warranty: 5 Years
- Product Name: CCT Adjustable LED Linear Strip, 4FT Linear strip Light, CCT Adjustable Strip Lights
Accessories
Default Setting/Setting
- Sensitivity: 100%/25%, 50%, 75%, 100%
- Daylight Sensor: Disable/Ambient Learn, 10lux, 30lux, 50lux, 100lux, 300lux, 500lux, Disable
- Twilight Level: 20%/off, 10%, 20%, 50%
4W or 8W UL Listed Emergency Backup
- Listed for field Instllation-UL924 & CSA C22.2 NO. 141
- Input: 120-277VAC/347VAC 50/60Hz
- Output: 25-50VDC, 15 or 30W
- Surge Protection: 3KV
